DMS033160-P5-IC
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

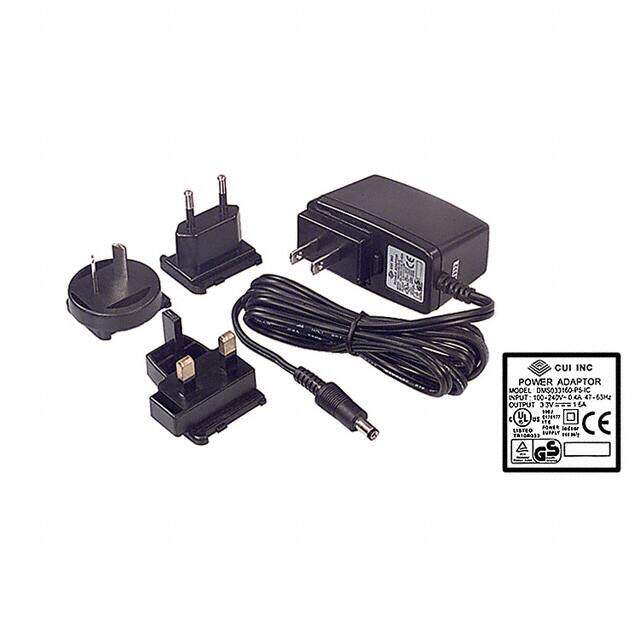

AC/DC WALL MNT ADAPTER 3.3V 5.3W
PDF
/
Inventory: 9074
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Wall
Weight 130g
Technical
Operating Temperature 0°C~40°C
Published 2006
Size / Dimension 2.83Lx1.38W x 1.81 H 72.0mmx35.0mmx46.0mm
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Connector Type Plug
Applications ITE (Commercial)
Power (Watts) 5.3W
Max Power Dissipation 5W
Number of Outputs 1
Approval Agency CE, cULus, TUVgs
Efficiency 75%
Max Output Current 1.6A
Polarity Positive
Polarization Positive Center
Voltage - Input 90V~264VAC
Cable Length 1.83m
Output Current 1.6A
Input Type Multi-Blade (Included)
Output Power 5W
Voltage - Output 3.3V
Form Wall Mount (Class II)
Region Utilized International
Cord Length 70.9 1.80m
Input Connector Multi-Blade
Output Connector Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Dimensions
Height 35.052mm
Compliance
RoHS Status RoHS Compliant
Lead Free Contains Lead
