DCH3-050EU-0006
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description

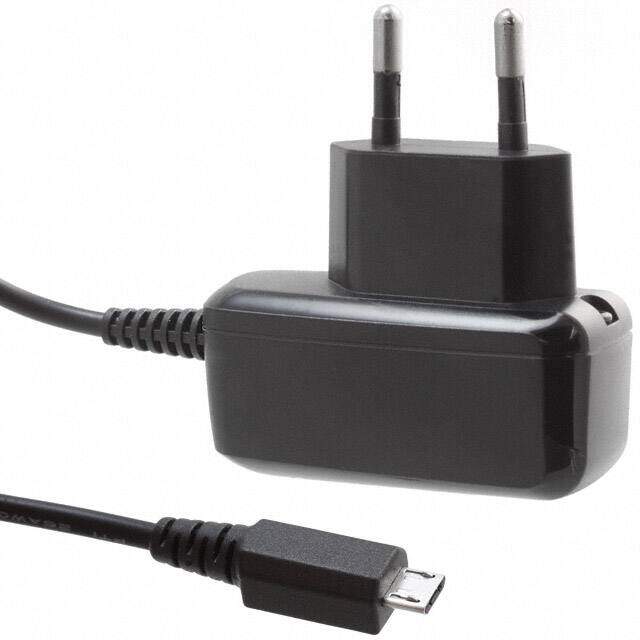

AC/DC WALL MOUNT ADAPTER 5V 2.8W
PDF
/
Inventory: 4862
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Weight 0.144lb 65.32g
Technical
Operating Temperature 0°C~45°C
Published 2010
Series DCH3 (3W)
Size / Dimension 2.45Lx1.07W x 1.79 H 58.0mmx26.1mmx45.8mm
Part Status Discontinued
Moisture Sensitivity Level (MSL) Not Applicable
Applications ITE (Commercial)
Power (Watts) 2.8W
Power Rating 3W
Number of Outputs 1
Approval Agency CB, CE
Efficiency Level V
Current - Output (Max) 550mA
Voltage - Input 100V~240VAC
Output Current 550mA
Input Type Fixed Blade
Output Power 3W
Voltage - Output 5V
Form Wall Mount (Class II)
Region Utilized Europe
Cord Length 59 1.50m
Input Connector CEE 7/16
Output Connector USB Micro
Compliance
RoHS Status RoHS Compliant
