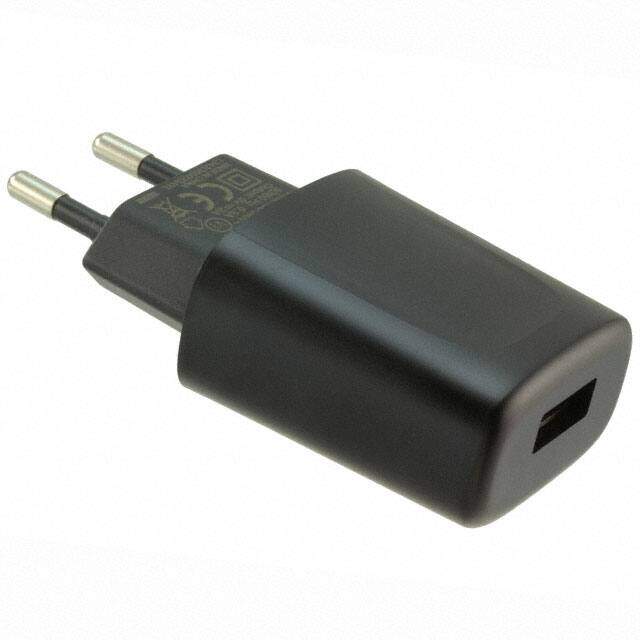

DA10-050EU
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description
AC/DC WALL MOUNT ADAPTER 5V 10W
PDF
/
Buying Options
Total Price: USD $10.11
Unit Price: USD $10.107888
≥1 USD $10.107888
≥10 USD $9.535744
≥100 USD $8.99599
≥500 USD $8.486781
≥1000 USD $8.006397
Inventory: 6612
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 39.624mm
Length 62.23mm
Height 24.892mm
Technical
No Load Power Consumption 75mW Max
Output Connector USB A Receptacle
Input Connector CEE 7/16
Region Utilized Europe
Form Wall Mount (Class II)
Voltage - Output 5V
Output Power 10W
Input Type Fixed Blade
Voltage - Input 90V~264VAC
Current - Output (Max) 2A
Max Output Current 2A
Efficiency Level VI, CoC Tier 2
Approval Agency CCC, CE, CSA, DEMKO CB, PSE, UL
Max Power Dissipation 10W
Power (Watts) 10W
Applications ITE (Commercial)
Min Operating Temperature -10°C
Max Operating Temperature 40°C
Connector Type Receptacle, USB
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 0.98Lx1.56W x 2.45 H 25.0mmx39.5mmx62.3mm
Series DA10 (10W)
Published 2016
Operating Temperature -10°C~40°C
Physical
Mount Wall
Supply Chain
Factory Lead Time 16 Weeks
