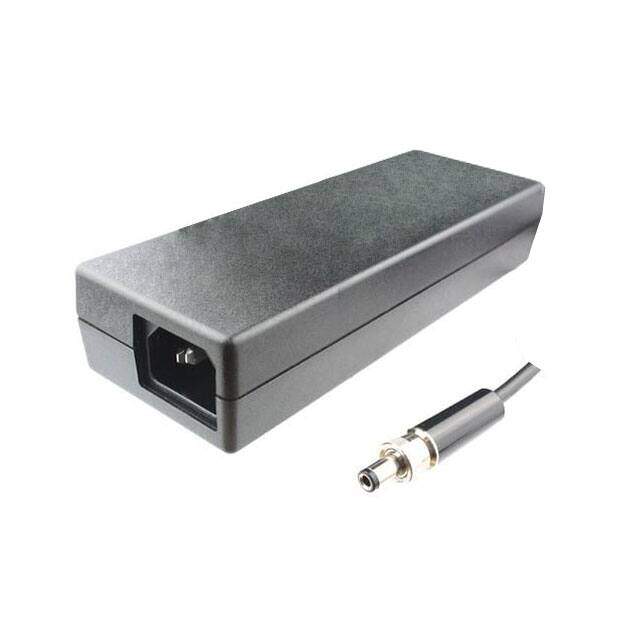

96PSA-A40W12W9-1

Advantech Corp
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Desktop, Wall Adapters
Description AC/DC DESKTOP ADAPTER 12V 40W
PDF
/
Inventory: 8443
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 50.038mm
Length 109.982mm
Height 32.004mm

Technical

No Load Power Consumption 100mW Max
Output Connector Barrel Plug Locking, 2.5mm I.D. x 5.5mm O.D. x 9.0mm
Input Connector IEC 320-C14
Cord Length 59 1.50m
Region Utilized International
Form Desktop (Class I)
Voltage - Output 12V
Input Type Cord (Sold Separately)
Voltage - Input 90V~264VAC
Current - Output (Max) 3.3A
Polarization Positive Center
Polarity Positive
Max Output Current 3.3A
Efficiency Level VI
Approval Agency CB, CE
Max Power Dissipation 40W
Power (Watts) 40W
Applications ITE (Commercial)
Min Operating Temperature 0°C
Max Operating Temperature 40°C
Connector Type Plug
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Size / Dimension 4.33Lx1.97W x 1.26 H 110.0mmx50.0mmx32.0mm
Series 96PSA (40W)
Published 2015
Operating Temperature 0°C~40°C

Supply Chain

Factory Lead Time 14 Weeks
