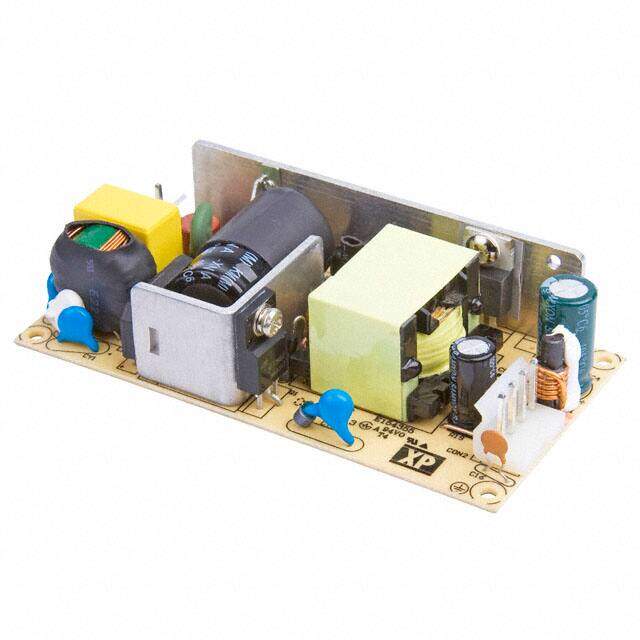

VCT60US15 image
Favorite
VCT60US15 image
Favorite

VCT60US15

XP Power
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description XP POWER VCT60US15 AC/DC Open Frame Power Supply, 1U Applications, Fixed, 1 Output, 85 V, 264 V, 60 W, 15 V
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 27 Weeks

Physical

Mount Chassis, Chassis Mount
Mounting Type Chassis Mount

Technical

Operating Temperature -10°C~70°C With Derating
Published 2010
Series VCT (60W)
Size / Dimension 4.00Lx2.00W x 0.84 H 101.6mmx50.8mmx21.6mm
Feature Universal Input
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial)
Power Rating 60W
Max Power Dissipation 60W
Number of Outputs 1
Efficiency 87%
Voltage - Isolation 3kV
Output Voltage 15V
Max Output Current 4A
Voltage - Input 85V~264VAC
Output Current 4A
Output Power 60W
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 5A
Max Output Power 60W
Minimum Load Required No
Nominal Output Voltage 15V
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V

Dimensions

Height 20mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
