VCS70US05
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

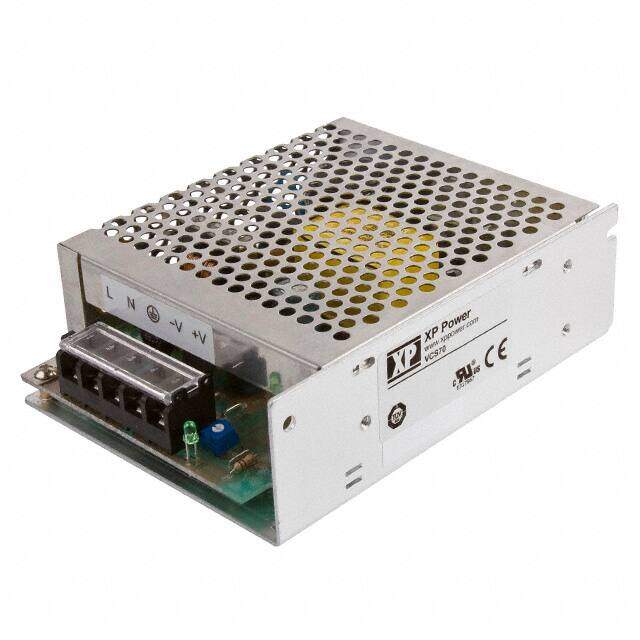

XP POWER VCS70US05 AC/DC Enclosed Power Supply, Industrial, Adjustable, Fixed, 1 Outputs, 85 V, 264 V, 50 W, 5 V
PDF
/
Buying Options
Total Price: USD $31.8
Unit Price: USD $31.8
≥1 USD $31.8
≥10 USD $30
≥100 USD $28.30189
≥1000 USD $25.18858
Inventory: 966
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 98.5mm
Height 40mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Nominal Output Voltage 5V
Minimum Load Required No
Max Output Power 50W
Current - Output 1 10A
Max Input Voltage 264V
Min Input Voltage 85V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 50W
Output Current 10A
Voltage - Input 85V~264VAC
Max Output Current 10A
Output Voltage 5V
Voltage - Isolation 3kV
Efficiency 80%
Approval Agency CB
Number of Outputs 1
Max Power Dissipation 70W
Power Rating 50W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 5.12Lx3.88W x 1.61 H 130.0mmx98.5mmx41.0mm
Series VCS (70W)
Published 2011
Operating Temperature -25°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount, Panel
Supply Chain
Factory Lead Time 21 Weeks
