VCS50US05
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

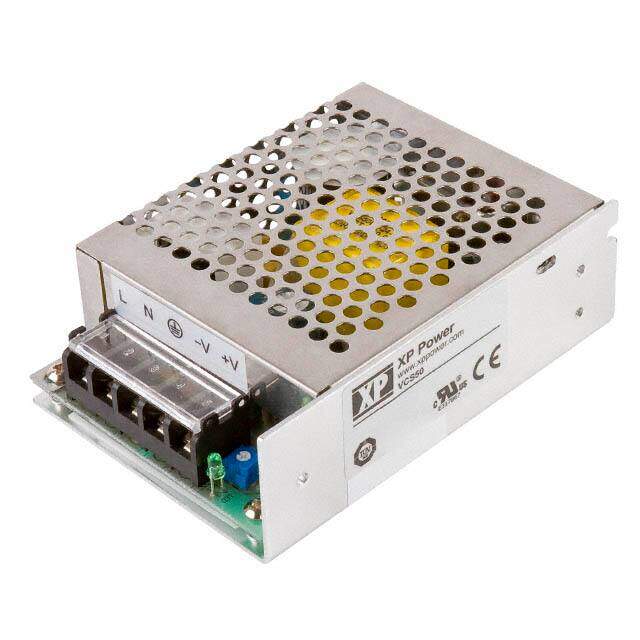

XP POWER VCS50US05 AC/DC Enclosed Power Supply, Industrial, Adjustable, Fixed, 1 Outputs, 85 V, 264 V, 40 W, 5 V
PDF
/
Buying Options
Total Price: USD $28.18
Unit Price: USD $28.17849
≥1 USD $28.17849
≥10 USD $26.58348
≥100 USD $25.07875
≥1000 USD $22.32
Inventory: 1706
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 78mm
Height 36mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Nominal Output Voltage 5V
Minimum Load Required No
Max Output Power 40W
Current - Output 1 8A
Max Input Voltage 264V
Min Input Voltage 85V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 40W
Output Current 8A
Voltage - Input 85V~264VAC
Max Output Current 8A
Output Voltage 5V
Voltage - Isolation 3kV
Efficiency 79%
Approval Agency CB
Number of Outputs 1
Max Power Dissipation 50W
Power Rating 40W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 4.35Lx3.07W x 1.38 H 110.5mmx78.0mmx35.0mm
Series VCS (50W)
Published 2011
Operating Temperature -25°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount, Panel
Supply Chain
Factory Lead Time 21 Weeks
