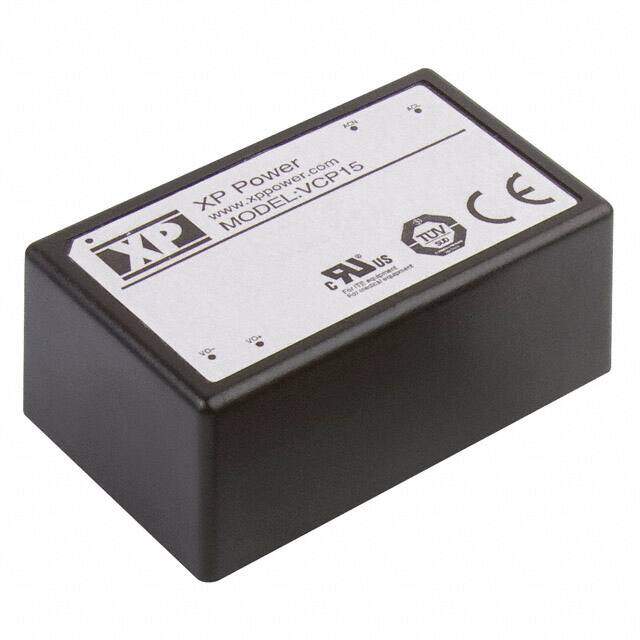

VCP15US05-E
RoHS
RoHS compliant
RoHS compliantPackage 5-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description
AC/DC CONVERTER 5V 15W
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 28.194mm
Technical
Load Regulation 2%
Line Regulation ±0.5%
Max Output Power 10W
Current - Output 1 2A
Max Input Voltage 264V
Min Input Voltage 90V
Output Power 15W
Voltage - Input 90V~264VAC
Max Output Current 2A
Output Voltage 5V
Efficiency 74%
Approval Agency cUL, IEC, EN
Number of Outputs 1
Max Power Dissipation 15W
Applications ITE (Commercial), Medical
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature OVP, SCP
Size / Dimension 2.72Lx1.65W x 1.11 H 69.0mmx42.0mmx28.2mm
Series VCP (15W)
Published 2013
Operating Temperature 0°C~70°C With Derating
Physical
Weight 0.221lb 100.24g
Package / Case 5-DIP Module
Mounting Type Through Hole
Mount PCB, Through Hole
Supply Chain
Factory Lead Time 26 Weeks
