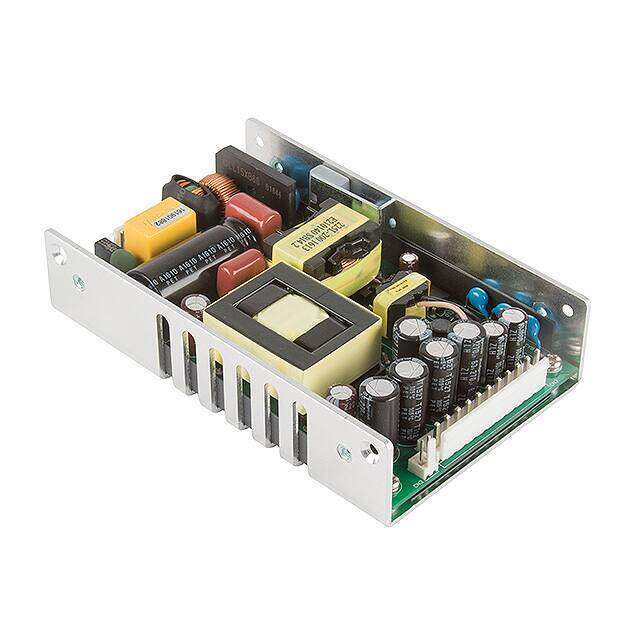

UCP225PS12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 225W
PDF
/
Buying Options
Total Price: USD $119.21
Unit Price: USD $119.205497
≥1 USD $119.205497
≥10 USD $112.458008
≥100 USD $106.092468
≥500 USD $100.087233
≥1000 USD $94.421916
Inventory: 1231
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Minimum Load Required No
Output Power 225W
Voltage - Input 85V~264VAC
Current - Output (Max) 12.5A
Voltage - Output 1 12V
Voltage - Isolation 4kV
Efficiency 92%
Approval Agency CB, CE
Number of Outputs 1
Power (Watts) 150W 225W Forced Air
Applications ITE (Commercial), Medical
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
Size / Dimension 5.00Lx3.12W x 1.18 H 127.0mmx79.2mmx29.2mm
Series UCP225 (225W)
Published 2016
Operating Temperature -40°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 18 Weeks
