SHP650PS48-EF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

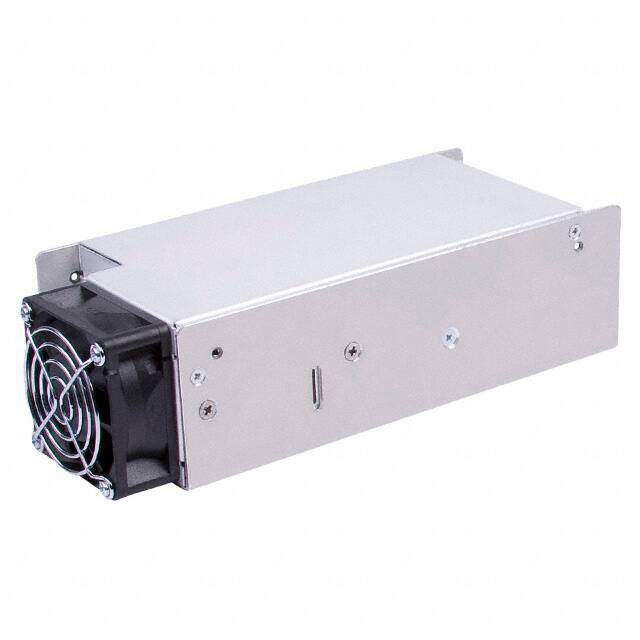

XP POWER SHP650PS48-EF AC/DC Enclosed Power Supply, Industrial, Adjustable, Fixed, 1 Outputs, 80 V, 264 V, 655 W, 48 V
PDF
/
Buying Options
Total Price: USD $289.14
Unit Price: USD $289.13599
≥1 USD $289.13599
≥10 USD $272.7698
≥100 USD $257.33
≥500 USD $242.76415
≥1000 USD $229.02278
Inventory: 2027
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Length 233.2mm
Height 63.5mm
Technical
Current - Output 3 200mA
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 80V
Current - Output 2 500mA
Nominal Output Voltage 48V
Minimum Load Required No
Max Output Power 655W
Voltage - Output 3 5V
Current - Output 1 13.5A
Max Input Voltage 264V
Min Input Voltage 80V
Voltage - Output 2 12V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Output Power 649W
Output Current 13.5A
Voltage - Input 85V~264VAC
Max Output Current 13.5A
Output Voltage 48V
Voltage - Isolation 3kV
Efficiency 85%
Approval Agency CB
Number of Outputs 1
Max Power Dissipation 650W
Power Rating 657W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input
Size / Dimension 9.18Lx4.00W x 2.50 H 233.2mmx101.6mmx63.5mm
Series SHP (650W)
Published 2010
Operating Temperature -40°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount, Panel
Supply Chain
Factory Lead Time 21 Weeks
