SHP350PS48
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

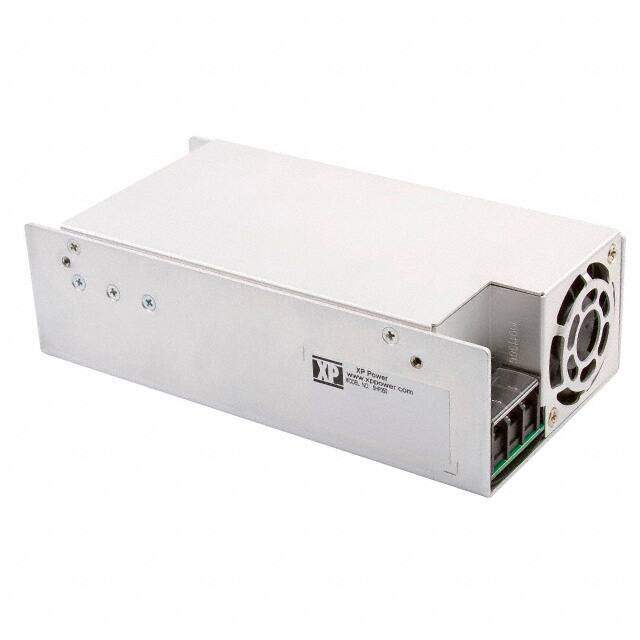

XP POWER SHP350PS48 AC/DC Enclosed Power Supply, Industrial, Adjustable, Fixed, 1 Outputs, 85 V, 264 V, 350 W, 48 V
PDF
/
Buying Options
Total Price: USD $151.69
Unit Price: USD $151.686
≥1 USD $151.686
≥10 USD $143.1
≥100 USD $135
Inventory: 130
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 53.34mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Nominal Output Voltage 48V
Minimum Load Required No
Max Output Power 350W
Current - Output 1 7.3A
Max Input Voltage 264V
Min Input Voltage 85V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Output Power 351W
Output Current 7.3A
Voltage - Input 85V~264VAC
Max Output Current 7.3A
Output Voltage 48V
Voltage - Isolation 3kV
Efficiency 85%
Approval Agency CB
Number of Outputs 1
Max Power Dissipation 350W
Power Rating 350W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input
Size / Dimension 7.00Lx3.60W x 2.10 H 177.8mmx91.4mmx53.3mm
Series SHP (350W)
Published 2010
Operating Temperature -40°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount, Panel
Supply Chain
Factory Lead Time 21 Weeks
