SHP1000PS12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

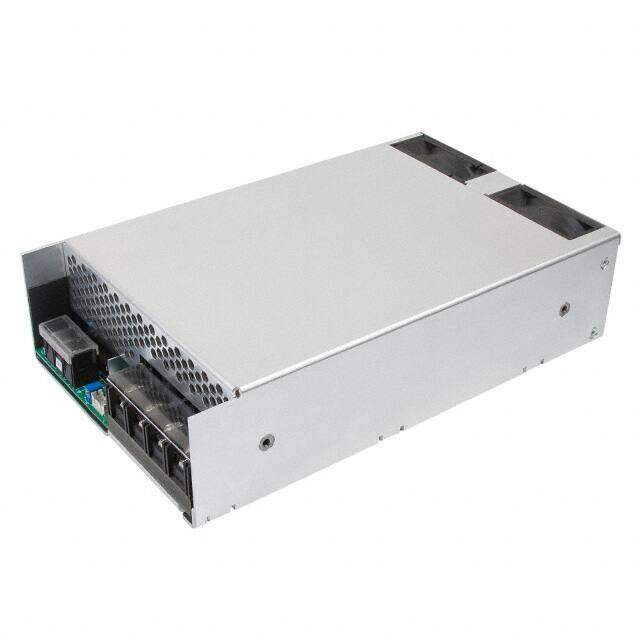

XP POWER SHP1000PS12 AC/DC Enclosed Power Supply, Industrial, Adjustable, Fixed, 1 Outputs, 85 V, 264 V, 1 kW, 12 V
PDF
/
Buying Options
Total Price: USD $568.54
Unit Price: USD $568.5416
≥1 USD $568.5416
≥10 USD $536.36
≥100 USD $506
≥500 USD $477.35849
≥1000 USD $450.3382
Inventory: 2148
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Length 242.64mm
Height 61mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Nominal Output Voltage 12V
Minimum Load Required No
Max Output Power 1kW
Current - Output 1 83A
Max Input Voltage 264V
Min Input Voltage 85V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Output Power 1.001kW
Output Current 83A
Voltage - Input 85V~264VAC
Max Output Current 83A
Output Voltage 12V
Voltage - Isolation 3kV
Efficiency 85%
Approval Agency CB
Number of Outputs 1
Max Power Dissipation 1kW
Power Rating 1.001kW
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Power (Watts) 1000W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, Load Sharing, Remote On/Off, Standby Output, Universal Input
Size / Dimension 9.55Lx5.90W x 2.40 H 242.6mmx149.8mmx61.0mm
Series SHP (1000W)
Published 2010
Operating Temperature -40°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount, Panel
Supply Chain
Factory Lead Time 21 Weeks
