SDS60US48
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

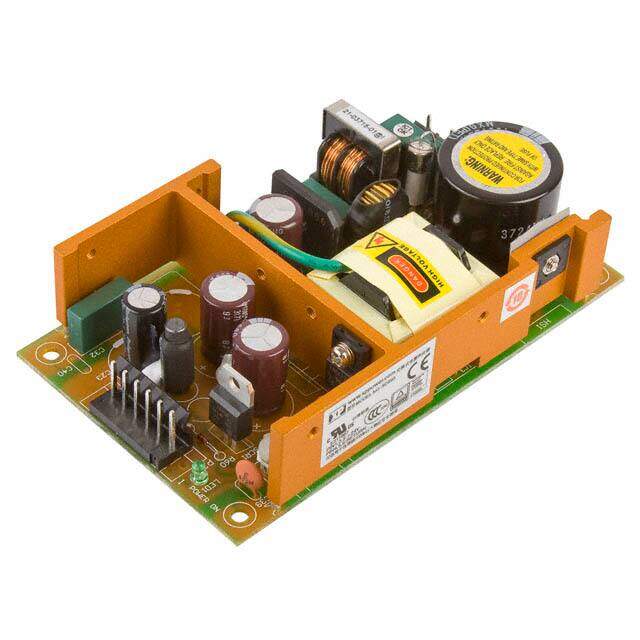

XP POWER SDS60US48 AC/DC Open Frame Power Supply, 1U Applications, Fixed, 1 Output, 90 V, 264 V, 63 W, 48 V
PDF
/
Buying Options
Total Price: USD $65
Unit Price: USD $65
≥1 USD $65
≥10 USD $61.32075
≥100 USD $57.84977
≥1000 USD $51.48609
Inventory: 8558
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 30.48mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 90V
Nominal Output Voltage 48V
Minimum Load Required No
Max Output Power 63W
Current - Output 1 1.3A
Max Input Voltage 264V
Min Input Voltage 90V
Output Power 60W
Output Current 1.3A
Voltage - Input 90V~264VAC
Max Output Current 1.3A
Output Voltage 48V
Voltage - Isolation 3kV
Efficiency 80%
Number of Outputs 1
Max Power Dissipation 60W
Power Rating 63W
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 5.00Lx3.00W x 1.20 H 127.0mmx76.2mmx30.5mm
Series SDS (60W)
Published 2013
Operating Temperature 0°C~70°C With Derating
Physical
Weight 250g
Mounting Type Chassis Mount
Mount Chassis, Chassis Mount
Supply Chain
Factory Lead Time 19 Weeks
