SDH400PD1224
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

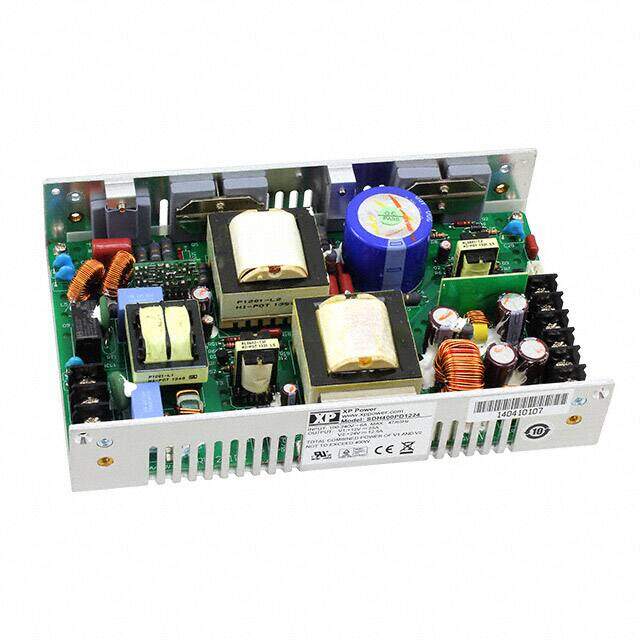

XP POWER SDH400PD1224AC/DC Open Frame Power Supply, 1U Applications, Adjustable, Fixed, 400W, 12V, 25A, 24V, 12.5A
PDF
/
Buying Options
Total Price: USD $458.64
Unit Price: USD $458.64
≥1 USD $458.64
≥10 USD $432.67925
≥100 USD $408.18797
≥500 USD $385.08299
≥1000 USD $363.28584
≥3000 USD $342.72249
Inventory: 7489
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 31.75mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 90V
Current - Output 2 12.5A
Max Output Power 400W
Current - Output 1 25A
Max Input Voltage 264V
Min Input Voltage 90V
Voltage - Output 2 24V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 400W
Voltage - Input 90V~264VAC
Current - Output (Max) 25A 12.5A
Voltage - Output 1 12V
Max Output Current 12.5A
Output Voltage 12V
Voltage - Isolation 3kV
Efficiency 88%
Approval Agency CB, TUV, UL
Number of Outputs 2
Max Power Dissipation 400W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Adjustable Output, Remote On/Off, Remote Sense, Universal Input
Size / Dimension 7.00Lx5.00W x 1.25 H 177.8mmx127.0mmx31.7mm
Series SDH400 (400W)
Published 2014
Operating Temperature 0°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis, Chassis Mount
Supply Chain
Factory Lead Time 13 Weeks
