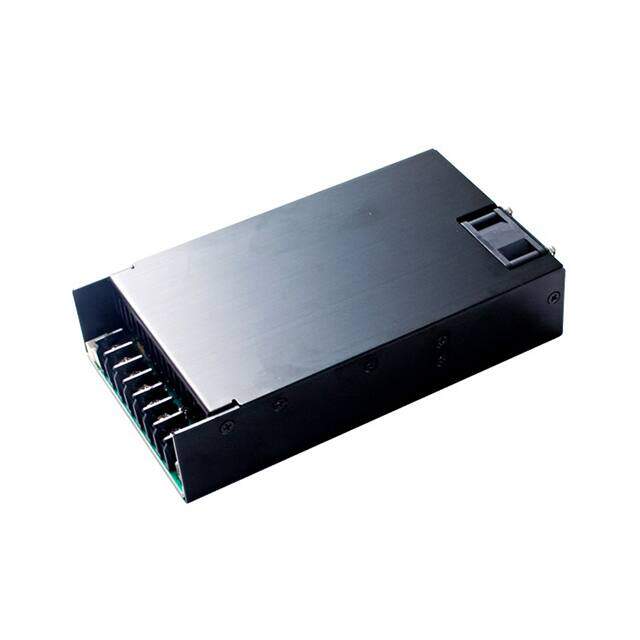

SDC320AS24-E
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
XP POWER SDC320AS24-E AC/DC Enclosed Power Supply, 1U Applications, Adjustable, Fixed, 1 Outputs, 90 V, 264 V, 180 W
PDF
/
Buying Options
Total Price: USD $399.44
Unit Price: USD $399.4398
≥1 USD $399.4398
≥10 USD $376.83
≥100 USD $355.5
≥1000 USD $316.39373
Inventory: 3930
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 27 Weeks
Physical
Mounting Type Chassis Mount
Weight 800g
Technical
Operating Temperature 0°C~70°C With Derating
Published 2009
Series SDC (320W)
Size / Dimension 7.00Lx4.00W x 1.60 H 177.8mmx101.6mmx40.6mm
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 180W 320W Forced Air
Subcategory Power Supply Modules
Power Rating 320W
Number of Outputs 1
Approval Agency CSA, EN, UL
Efficiency 83%
Voltage - Isolation 3000V
Output Voltage 24V
Max Output Current 7.5A
Output Current 13.33A
Output Power 180W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Min Input Voltage 90V
Max Input Voltage 264V
Current - Output 1 7.5A
Max Output Power 180W
Minimum Load Required Yes
Nominal Output Voltage 24V
Min Input Voltage (AC) 90V
Max Input Voltage (AC) 264V
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
