MHP650PS15-EF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

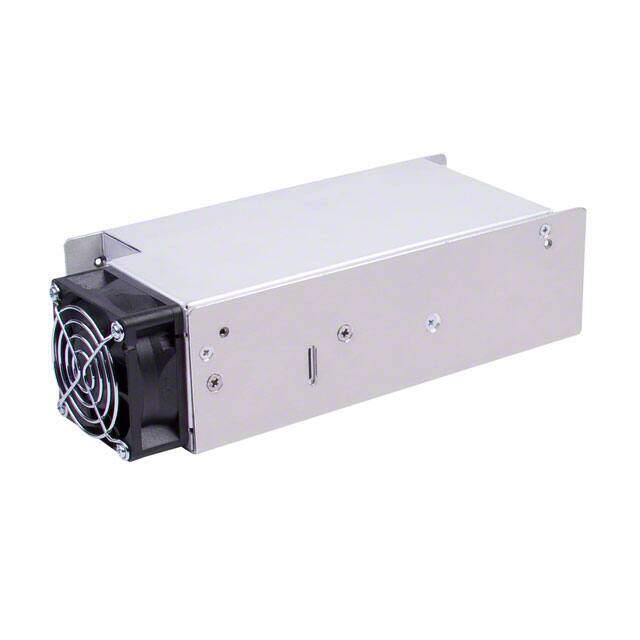

PSU, 650W, MEDICAL 15V 40A
PDF
/
Buying Options
Total Price: USD $544.8
Unit Price: USD $544.8
≥1 USD $544.8
≥10 USD $513.96226
≥100 USD $484.87006
≥500 USD $457.42459
≥1000 USD $431.53263
Inventory: 5298
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 233.2mm
Height 101.6mm
Technical
Nominal Output Voltage 15V
Minimum Load Required No
Max Output Power 607W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Output Power 601W
Output Current 40A
Voltage - Input 85V~264VAC
Max Output Current 40A
Output Voltage 15V
Voltage - Isolation 4kV
Efficiency 84%
Approval Agency CB
Number of Outputs 1
Max Power Dissipation 601W
Power Rating 607W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications Medical
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
Size / Dimension 9.18Lx4.00W x 2.50 H 233.2mmx101.6mmx63.5mm
Series MHP (650W)
Published 2011
Operating Temperature -20°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount, Panel
Supply Chain
Factory Lead Time 24 Weeks
