MFA350PS48-STF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

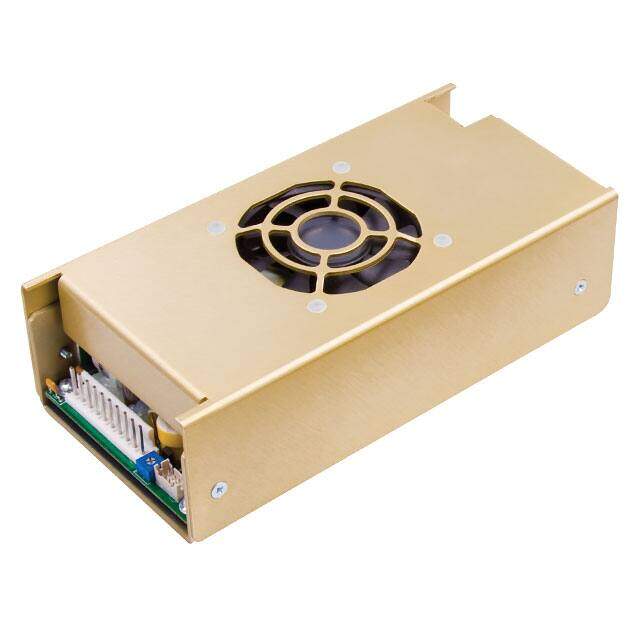

XP POWER MFA350PS48-STF AC/DC Enclosed Power Supply, Top Fan, Adjustable, Fixed, 1 Outputs, 85 V, 264 V, 364 W, 48 V
PDF
/
Buying Options
Total Price: USD $371
Unit Price: USD $371
≥1 USD $371
≥10 USD $350
≥100 USD $330.18868
≥1000 USD $293.86675
Inventory: 6952
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Width 84.5mm
Height 50.79mm
Technical
Current - Output 3 300mA
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Current - Output 2 1A
Nominal Output Voltage 48V
Minimum Load Required No
Max Output Power 364W
Voltage - Output 3 5V
Current - Output 1 7.3A
Max Input Voltage 264V
Min Input Voltage 85V
Voltage - Output 2 12V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Output Power 352W
Output Current 7.3A
Voltage - Input 85V~264VAC
Max Output Current 7.3A
Output Voltage 48V
Voltage - Isolation 3kV
Efficiency 88%
Approval Agency CB, CE
Number of Outputs 1
Max Power Dissipation 350W
Power Rating 364W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Power (Watts) 350W 364W Forced Air
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, Hot Swappable, Load Sharing, Standby Output, Universal Input
Size / Dimension 6.80Lx3.33W x 2.80 H 172.7mmx84.5mmx52.8mm
Series MFA (350W)
Published 2011
Operating Temperature -10°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount, Panel
Supply Chain
Factory Lead Time 24 Weeks
