MFA350PS24-STF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

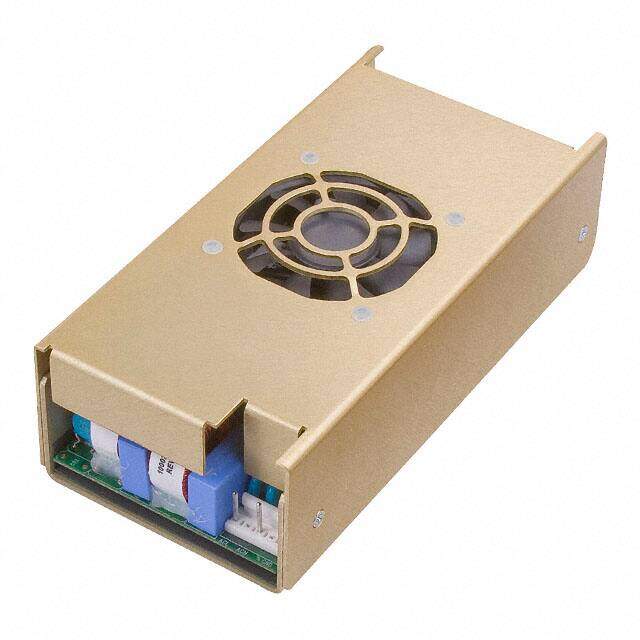

XP POWER MFA350PS24-STF AC/DC Enclosed Power Supply, Top Fan, Adjustable, Fixed, 1 Outputs, 85 V, 264 V, 361 W, 24 V
PDF
/
Buying Options
Total Price: USD $374.18
Unit Price: USD $374.18
≥1 USD $374.18
≥10 USD $353
≥100 USD $333.01887
≥500 USD $314.16874
≥1000 USD $296.38561
Inventory: 6113
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Chassis Mount, Panel
Mounting Type Chassis Mount
Technical
Operating Temperature -10°C~70°C With Derating
Published 2012
Series MFA (350W)
Size / Dimension 6.80Lx3.33W x 2.80 H 172.7mmx84.5mmx52.8mm
Feature Adjustable Output, Hot Swappable, Load Sharing, Standby Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 350W 361W Forced Air
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Power Rating 361W
Max Power Dissipation 350W
Number of Outputs 1
Approval Agency CB, CE
Efficiency 87%
Voltage - Isolation 3kV
Output Voltage 24V
Max Output Current 14.5A
Voltage - Input 85V~264VAC
Output Current 14.5A
Output Power 350W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Voltage - Output 2 12V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 14.5A
Voltage - Output 3 5V
Max Output Power 361W
Minimum Load Required No
Nominal Output Voltage 24V
Current - Output 2 1A
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V
Current - Output 3 300mA
Dimensions
Height 50.79mm
Width 84.5mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
