MFA350PS24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

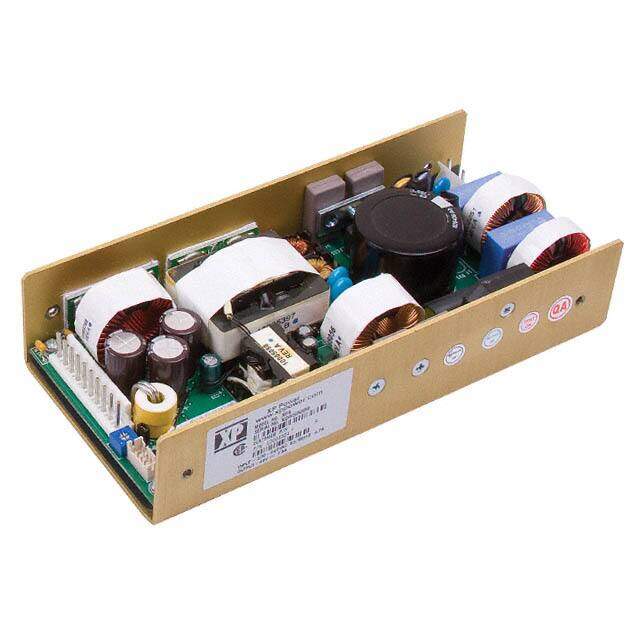

XP POWER MFA350PS24 AC/DC Open Frame Power Supply, Adjustable, Fixed, 1 Output, 85 V, 264 V, 350 W, 24 V
PDF
/
Buying Options
Total Price: USD $315.62
Unit Price: USD $315.61924
≥1 USD $315.61924
≥10 USD $297.754
≥100 USD $280.9
≥500 USD $265
≥1000 USD $250
Inventory: 998
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 38.1mm
Technical
Current - Output 3 300mA
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Current - Output 2 1A
Nominal Output Voltage 24V
Minimum Load Required No
Max Output Power 350W
Voltage - Output 3 5V
Current - Output 1 14.5A
Max Input Voltage 264V
Min Input Voltage 85V
Voltage - Output 2 12V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Output Power 350W
Output Current 14.5A
Voltage - Input 85V~264VAC
Max Output Current 14.5A
Output Voltage 24V
Voltage - Isolation 3kV
Efficiency 87%
Approval Agency CB, CE
Number of Outputs 1
Max Power Dissipation 350W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Power (Watts) 350W 361W Forced Air
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Adjustable Output, Hot Swappable, Load Sharing, Standby Output, Universal Input
Size / Dimension 6.80Lx3.20W x 1.50 H 172.7mmx81.3mmx38.1mm
Series MFA (350W)
Published 2011
Operating Temperature -10°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis, Chassis Mount
Supply Chain
Factory Lead Time 24 Weeks
