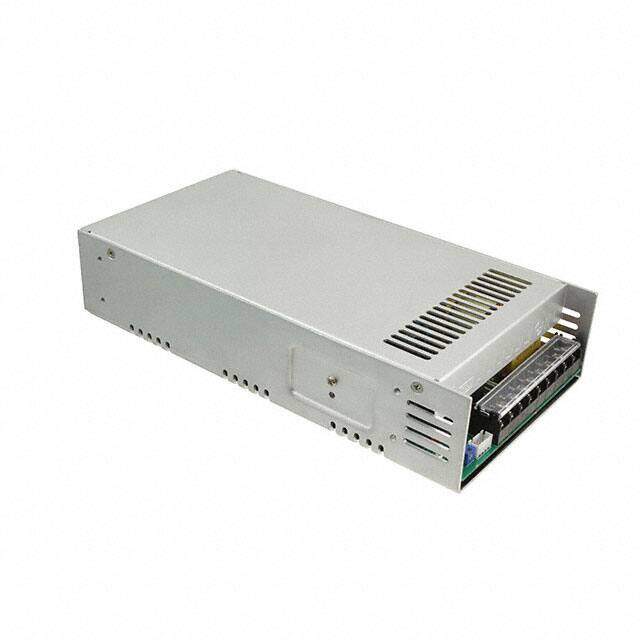

LCL500PS27
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 27V 500W
PDF
/
Inventory: 9066
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 250mm
Height 52.832mm
Technical
Ripple Voltage (Main Out) 0.05303Vrms
Minimum Load Required No
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Voltage - Input 85V~264VAC
Voltage - Output 1 27V
Max Output Current 18.5A
Voltage - Isolation 3kV
Efficiency 88%
Approval Agency CSA, EN, UL
Number of Outputs 1
Max Power Dissipation 500W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Power (Watts) 500W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Universal Input
Size / Dimension 9.84Lx5.00W x 2.08 H 250.0mmx127.0mmx53.0mm
Series LCL (500W)
Published 2014
Operating Temperature -10°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 18 Weeks
