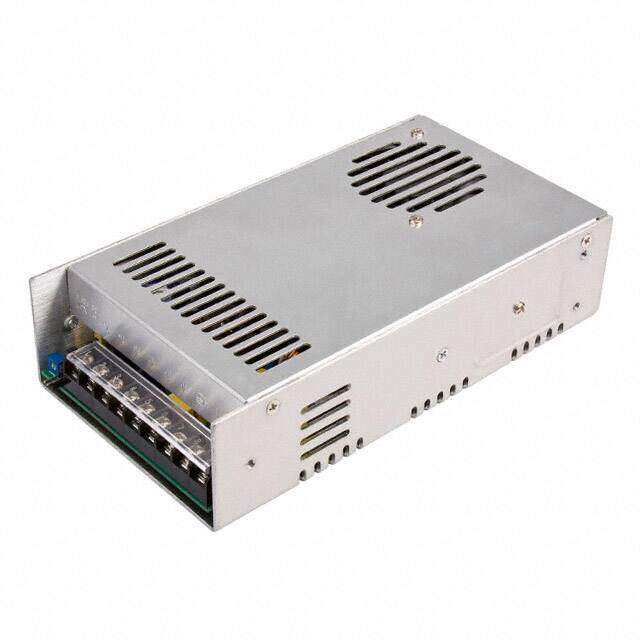

LCL300PS12
RoHS
RoHS compliant
RoHS compliantPackage 300
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
XP POWER LCL300PS12 AC/DC Enclosed Power Supply, Industrial, Fixed, 1 Outputs, 85 V, 264 V, 300 W, 12 V
PDF
/
Inventory: 6564
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Dimensions
Length 205mm
Height 50mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Nominal Output Voltage 12V
Minimum Load Required No
Max Output Power 300W
Current - Output 1 25A
Max Input Voltage 264V
Min Input Voltage 85V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Output Power 300W
Output Current 25A
Voltage - Input 85V~264VAC 127V~370VDC
Max Output Current 25A
Output Voltage 12V
Voltage - Isolation 3kV
Efficiency 88%
Approval Agency CSA, EN, UL
Number of Outputs 1
Max Power Dissipation 300W
Power Rating 300W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Feature Adjustable Output, Universal Input
Size / Dimension 8.07Lx4.33W x 1.97 H 205.0mmx110.0mmx50.0mm
Series LCL (300W)
Published 2009
Operating Temperature -10°C~70°C With Derating
Physical
Package / Case 300
Mounting Type Chassis Mount
Mount Chassis Mount, Panel
Supply Chain
Factory Lead Time 13 Weeks
