LCL150PS24

XP Power
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters

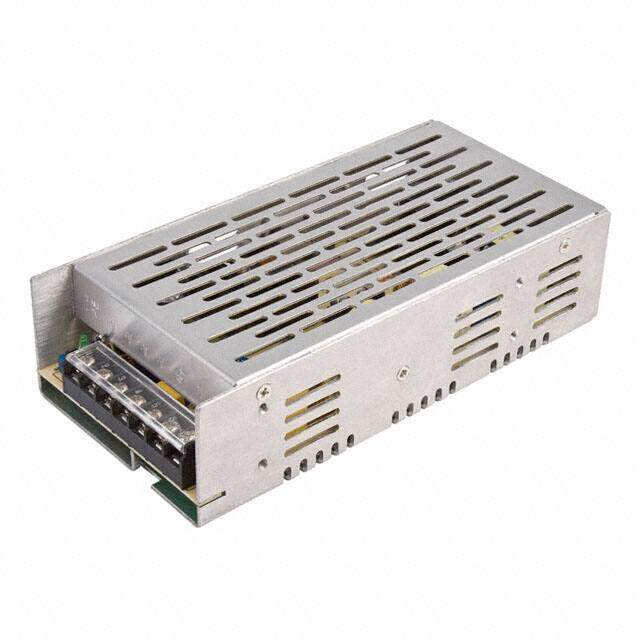

Description XP POWER LCL150PS24 AC/DC Enclosed Power Supply, Industrial, Fixed, 1 Outputs, 85 V, 264 V, 150 W, 24 V
PDF
/
Inventory: 8625
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 24 Weeks

Physical

Mount Chassis Mount, Panel
Mounting Type Chassis Mount

Technical

Operating Temperature -10°C~70°C With Derating
Published 2009
Series LCL (150W)
Size / Dimension 7.55Lx3.74W x 2.54 H 192.0mmx95.0mmx64.5mm
Feature Adjustable Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed
Applications ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 150W
Max Power Dissipation 150W
Number of Outputs 1
Approval Agency CSA, EN, UL
Efficiency 88%
Voltage - Isolation 3kV
Output Voltage 24V
Max Output Current 6.3A
Voltage - Input 85V~264VAC
Output Current 6.3A
Output Power 151W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 6.3A
Max Output Power 150W
Minimum Load Required No
Nominal Output Voltage 24V
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V

Dimensions

Height 50mm
Width 95mm

Compliance

REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
