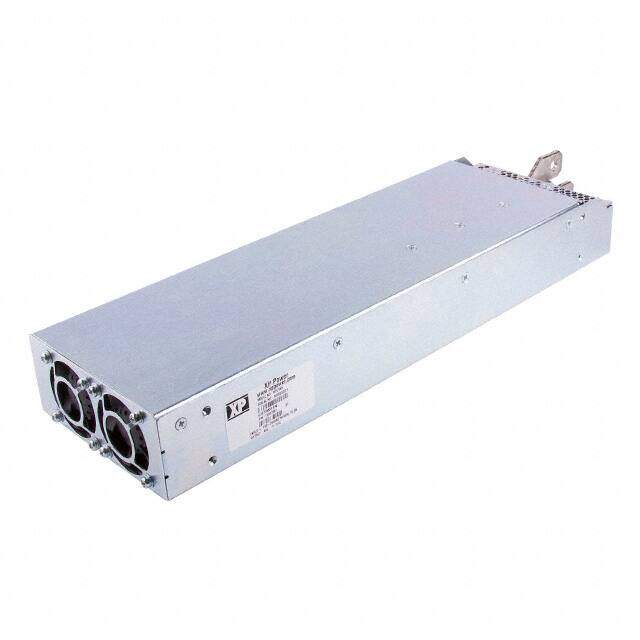

HPU1K5PS12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
XP POWER HPU1K5PS12 AC/DC Enclosed Power Supply, Medical, Adjustable, 1 Outputs, 85 V, 264 V, 1.2 kW, 12 V
PDF
/
Buying Options
Total Price: USD $1240
Unit Price: USD $1240
≥1 USD $1240
≥10 USD $1199.22631
≥25 USD $1190.89008
≥50 USD $1182.61179
≥100 USD $1158.28775
≥500 USD $1075.47609
Inventory: 6636
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Length 323.9mm
Height 43.2mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Current - Output 2 1A
Minimum Load Required No
Max Output Power 1.2kW
Current - Output 1 100A
Max Input Voltage 264V
Min Input Voltage 85V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Output Power 1.205kW
Output Current 100A
Voltage - Input 85V~264VAC
Max Output Current 100A
Output Voltage 12V
Voltage - Isolation 4kV
Efficiency 90%
Approval Agency CSA, EN, UL
Number of Outputs 1
Max Power Dissipation 1.2kW
Power Rating 1.2kW
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Power (Watts) 1200W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, Remote Sense, Standby Output, Universal Input
Size / Dimension 12.75Lx4.00W x 1.70 H 323.9mmx101.6mmx43.2mm
Series HPU1K5 (1500W)
Published 2009
Operating Temperature -20°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount, Panel
Supply Chain
Factory Lead Time 21 Weeks
