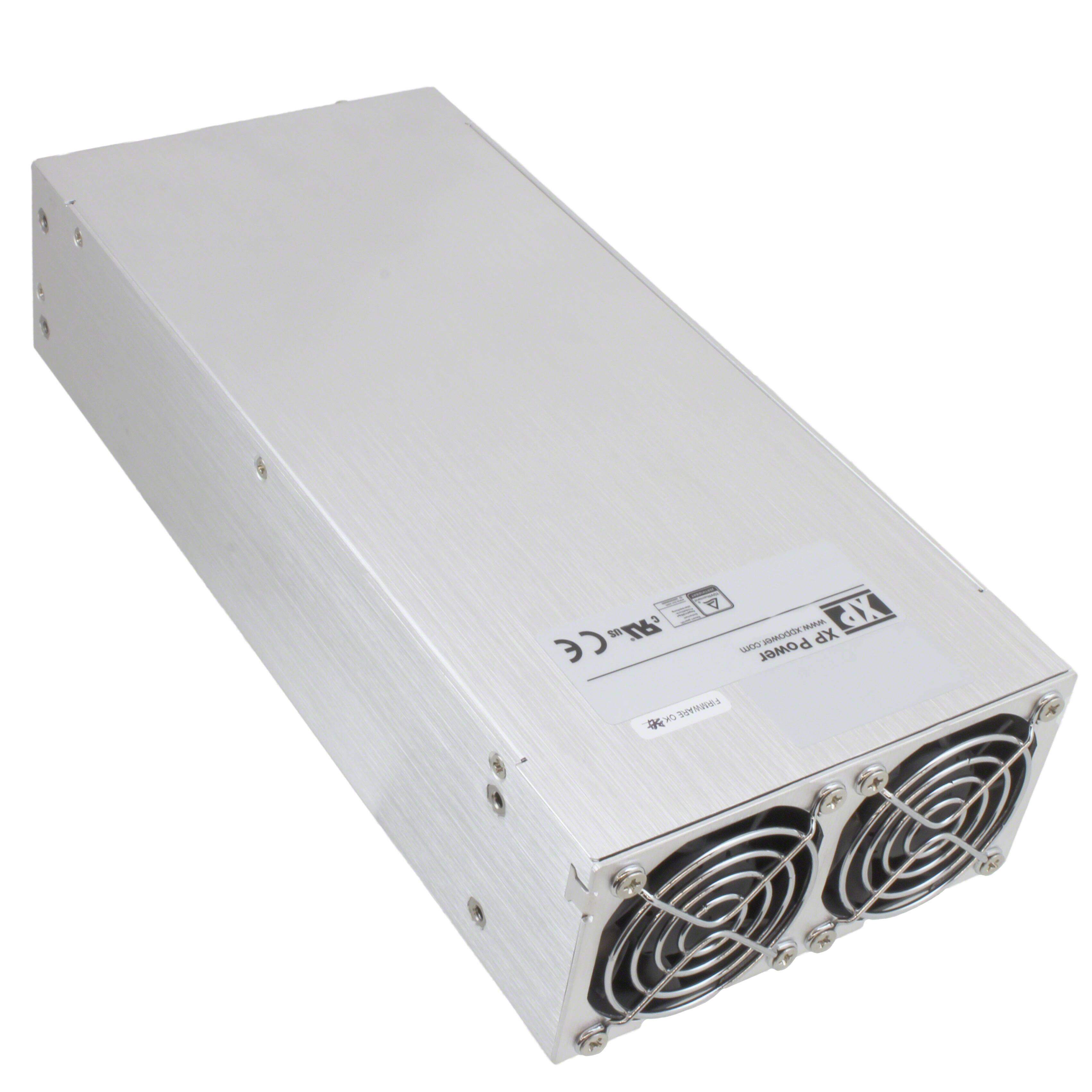

HDS1500PS30

XP Power
RoHS
RoHS RoHS compliant
Package 100
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description XP POWER HDS1500PS30AC/DC Enclosed Power Supply, Chassis Mount, Adjustable, Fixed, 90 V, 264 V, 1.5 kW, 30 V, 50 A
PDF
/
Buying Options
Total Price: USD $978
Unit Price: USD $978
≥1 USD $978
≥10 USD $922.64151
≥100 USD $870.41652
Inventory: 7804
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Height 63.5mm

Technical

Max Input Voltage (AC) 264V
Min Input Voltage (AC) 90V
Nominal Output Voltage 30V
Minimum Load Required No
Max Output Power 1.5kW
Current - Output 1 50A
Max Input Voltage 264V
Min Input Voltage 90V
Output Power 1.5kW
Voltage - Input 90V~264VAC
Max Output Current 50A
Voltage - Isolation 3kV
Efficiency 92%
Approval Agency CB, TUV, UL
Number of Outputs 1
Max Power Dissipation 1.5kW
Power (Watts) 1500W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Adjustable Output, I2C? Interface, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input
Size / Dimension 12.32Lx5.00W x 2.50 H 294.50mmx127.0mmx63.5mm
Series HDS1500 (1500W)
Published 2013
Operating Temperature -20°C~60°C With Derating

Physical

Package / Case 100
Mounting Type Chassis Mount
Mount Chassis Mount, Panel

Supply Chain

Factory Lead Time 27 Weeks
