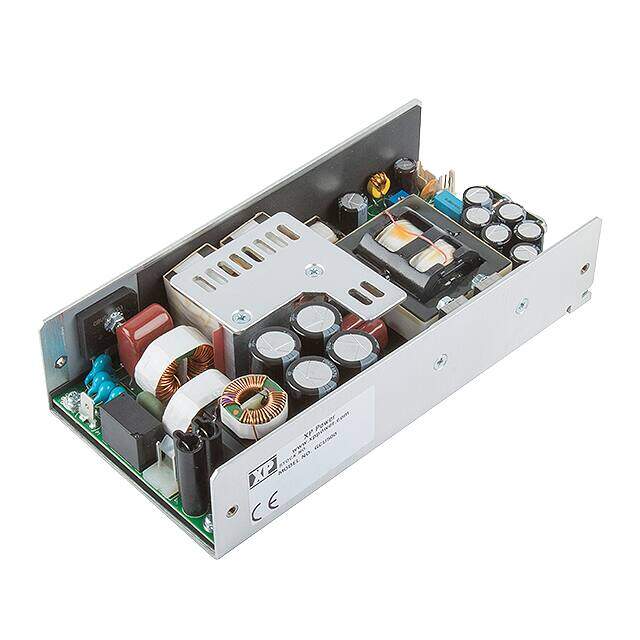

GCU500PS24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC-DC OPEN FRAME PSU, 500W, IND+
PDF
/
Buying Options
Total Price: USD $188.64
Unit Price: USD $188.6412
≥1 USD $188.6412
≥10 USD $177.9634
≥100 USD $167.89
≥500 USD $158.38679
≥1000 USD $149.4215
≥3000 USD $140.96368
Inventory: 6642
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Minimum Load Required No
Total Power Output-Max 500W
Output Power 250W
Voltage - Input 80V~264VAC
Current - Output (Max) 10.4A
Trim/Adjustable Output YES
Input Voltage-Nom 115V
Voltage - Output 1 24V
Output Voltage 24V
Voltage - Isolation 4kV
Efficiency 92%
Approval Agency CB, CE, TUV, UL
Number of Outputs 1
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 250W 499W Forced Air
Applications ITE (Commercial), Medical
Type Enclosed
Number of Terminations 16
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Remote On/Off, Standby Output, Universal Input
Size / Dimension 6.50Lx3.30W x 1.55 H 165.1mmx83.8mmx39.4mm
Series GCU500 (500W)
Published 2017
Operating Temperature -40°C~70°C With Derating
Physical
Surface Mount NO
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 21 Weeks
