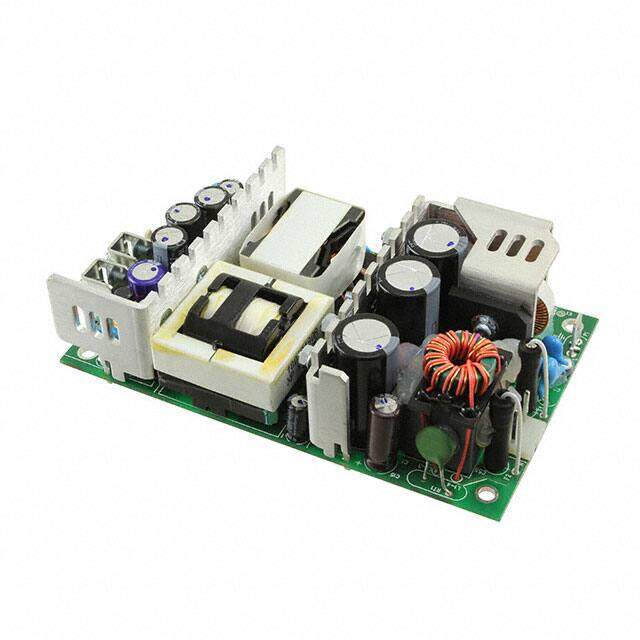

GCS350PS56
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
XP POWER GCS350PS56 POWER SUPPLY, AC-DC, 350W, 56V, 3.6A
PDF
/
Buying Options
Total Price: USD $163.24
Unit Price: USD $163.24
≥1 USD $163.24
≥10 USD $154
Inventory: 30
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 38.1mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Minimum Load Required No
Max Output Power 350W
Current - Output 1 3.6A
Max Input Voltage 264V
Min Input Voltage 85V
Output Power 200W
Voltage - Input 85V~264VAC
Trim/Adjustable Output YES
Input Voltage-Nom 115V
Voltage - Output 1 56V
Max Output Current 3.6A
Output Voltage 56V
Voltage - Isolation 4kV
Efficiency 93%
Approval Agency CB, CE
Number of Outputs 1
JESD-30 Code R-XXMA-X32
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 200W
Power (Watts) 200W 350W Forced Air
Applications ITE (Commercial), Medical
Type Open Frame
Number of Terminations 32
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature 80 Plus? Silver, Adjustable Output, PFC, Remote Sense, Universal Input
Size / Dimension 5.00Lx3.00W x 1.50 H 127.0mmx76.2mmx38.1mm
Series GCS (350W)
Published 2014
Operating Temperature -40°C~70°C
Physical
Mounting Type Chassis Mount
Mount Chassis, Chassis Mount
Supply Chain
Factory Lead Time 24 Weeks
