GCS250PS48
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

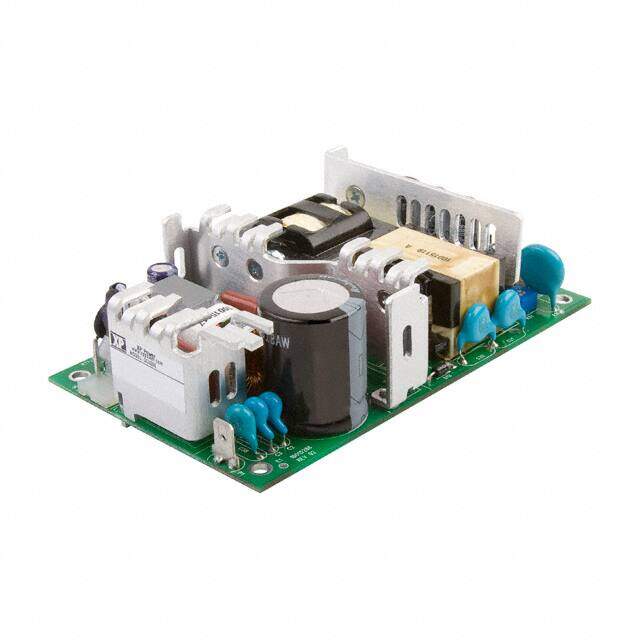

XP POWER GCS250PS48AC/DC Open Frame Power Supply, Medical, Fixed, 85 V, 264 V, 257 W, 48 V, 5.2 A
PDF
/
Buying Options
Total Price: USD $120.23
Unit Price: USD $120.2252
≥1 USD $120.2252
≥10 USD $113.42
≥100 USD $107
Inventory: 789
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mount Chassis, Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature -40°C~70°C With Derating
Published 2013
Series GCS (250W)
Size / Dimension 5.00Lx3.00W x 1.42 H 127.0mmx76.2mmx36.3mm
Feature Adjustable Output, Standby Output, Universal Input
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 20
Type Open Frame
Applications ITE (Commercial), Medical
Power (Watts) 180W 250W Forced Air
Max Power Dissipation 180W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code R-XXMA-X20
Number of Outputs 1
Approval Agency CB, CE
Efficiency 93%
Voltage - Isolation 4kV
Output Voltage 48V
Max Output Current 3.7A
Input Voltage-Nom 115V
Trim/Adjustable Output YES
Voltage - Input 85V~264VAC
Output Power 250W
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 5.2A
Max Output Power 257W
Minimum Load Required No
Nominal Output Voltage 48V
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V
Dimensions
Height 36.068mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
