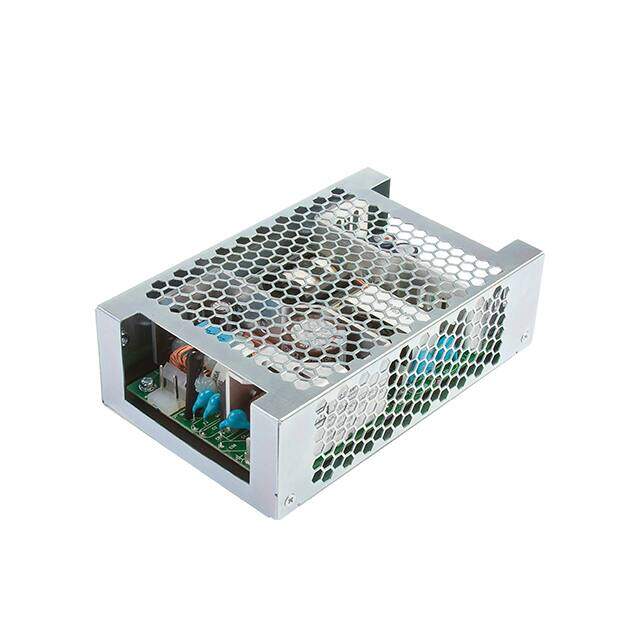

GCS180PS24-C
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
XP POWER GCS180PS24-CAC/DC CONVERTER, 1 O/P, 24V, 6.3A, 187W
PDF
/
Buying Options
Total Price: USD $119.1
Unit Price: USD $119.1016
≥1 USD $119.1016
≥10 USD $112.36
≥100 USD $106
≥500 USD $100
≥1000 USD $94.33962
Inventory: 2940
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mounting Type Chassis Mount
Surface Mount NO
Technical
Operating Temperature -40°C~70°C With Derating
Published 2014
Series GCS (180W)
Feature PFC, Standby Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 20
Type Enclosed
Applications ITE (Commercial), Medical
Power (Watts) 151W 180W Forced Air
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code R-XXMA-X20
Number of Outputs 1
Approval Agency CB, CE, TUV, UL
Efficiency 93%
Voltage - Isolation 4000V
Output Voltage 24V
Max Output Current 6.3A
Input Voltage-Nom 115V
Trim/Adjustable Output YES
Voltage - Input 85V~264VAC
Output Power 187W
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 6.3A
Max Output Power 187W
Minimum Load Required No
Nominal Output Voltage 24V
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
