GCS150PS28
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

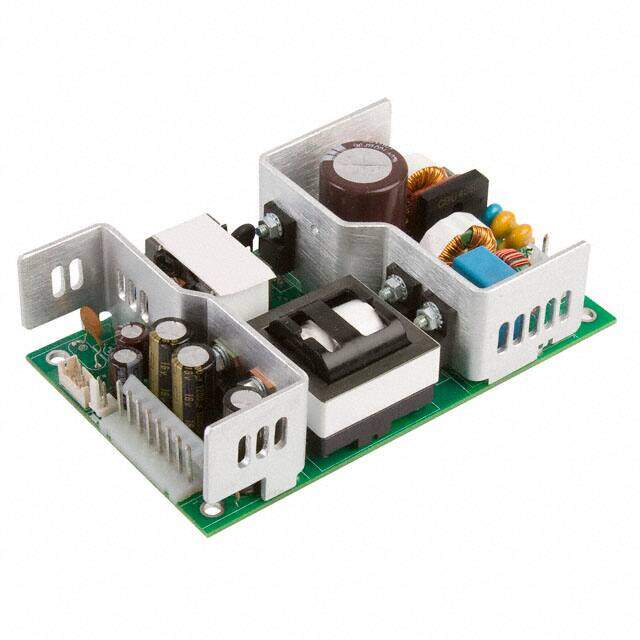

XP POWER GCS150PS28 POWER SUPPLY, AC-DC, MEDICAL, 28V, 3.9A
PDF
/
Buying Options
Total Price: USD $85.96
Unit Price: USD $85.9554
≥1 USD $85.9554
≥10 USD $81.09
≥100 USD $76.5
≥500 USD $72.16981
≥1000 USD $68.08473
Inventory: 9921
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Height 36.068mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Nominal Output Voltage 28V
Minimum Load Required No
Max Output Power 157W
Current - Output 1 3.9A
Max Input Voltage 264V
Min Input Voltage 85V
Output Power 110W
Output Current 5.4A
Voltage - Input 85V~264VAC
Trim/Adjustable Output YES
Input Voltage-Nom 115V
Max Output Current 3.9A
Output Voltage 28V
Voltage - Isolation 4kV
Efficiency 93%
Approval Agency CB, CE
Number of Outputs 1
JESD-30 Code R-XXMA-X20
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 110W
Power (Watts) 110W 150W Forced Air
Applications ITE (Commercial), Medical
Type Open Frame
Number of Terminations 20
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Adjustable Output, Standby Output, Universal Input
Size / Dimension 5.00Lx3.00W x 1.42 H 127.0mmx76.2mmx36.3mm
Series GCS (150W)
Published 2013
Operating Temperature -40°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis, Chassis Mount
Supply Chain
Factory Lead Time 24 Weeks
