FCS40US12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

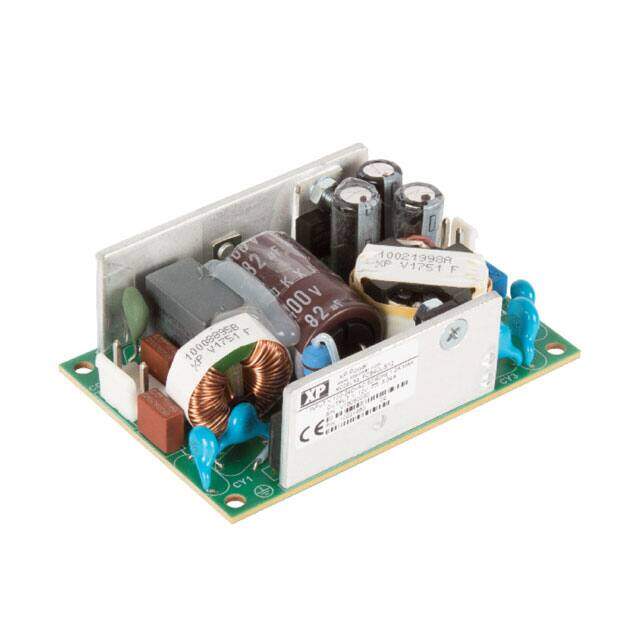

AC-DC CONVERTER, 40W OPEN FRAME,
PDF
/
Buying Options
Total Price: USD $19.08
Unit Price: USD $19.08
≥1 USD $19.08
≥10 USD $18
Inventory: 39
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Voltage - Input 80V~264VAC
Current - Output (Max) 3.34A
Voltage - Output 1 12V
Voltage - Isolation 4kV
Efficiency 82%
Approval Agency CE
Number of Outputs 1
Power (Watts) 40W
Applications Household Appliances, ITE (Commercial), Medical
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, Universal Input
Size / Dimension 3.00Lx2.00W x 1.04 H 76.2mmx50.8mmx26.5mm
Series FCS40 (40W)
Operating Temperature -25°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 24 Weeks
