EML15US05-T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

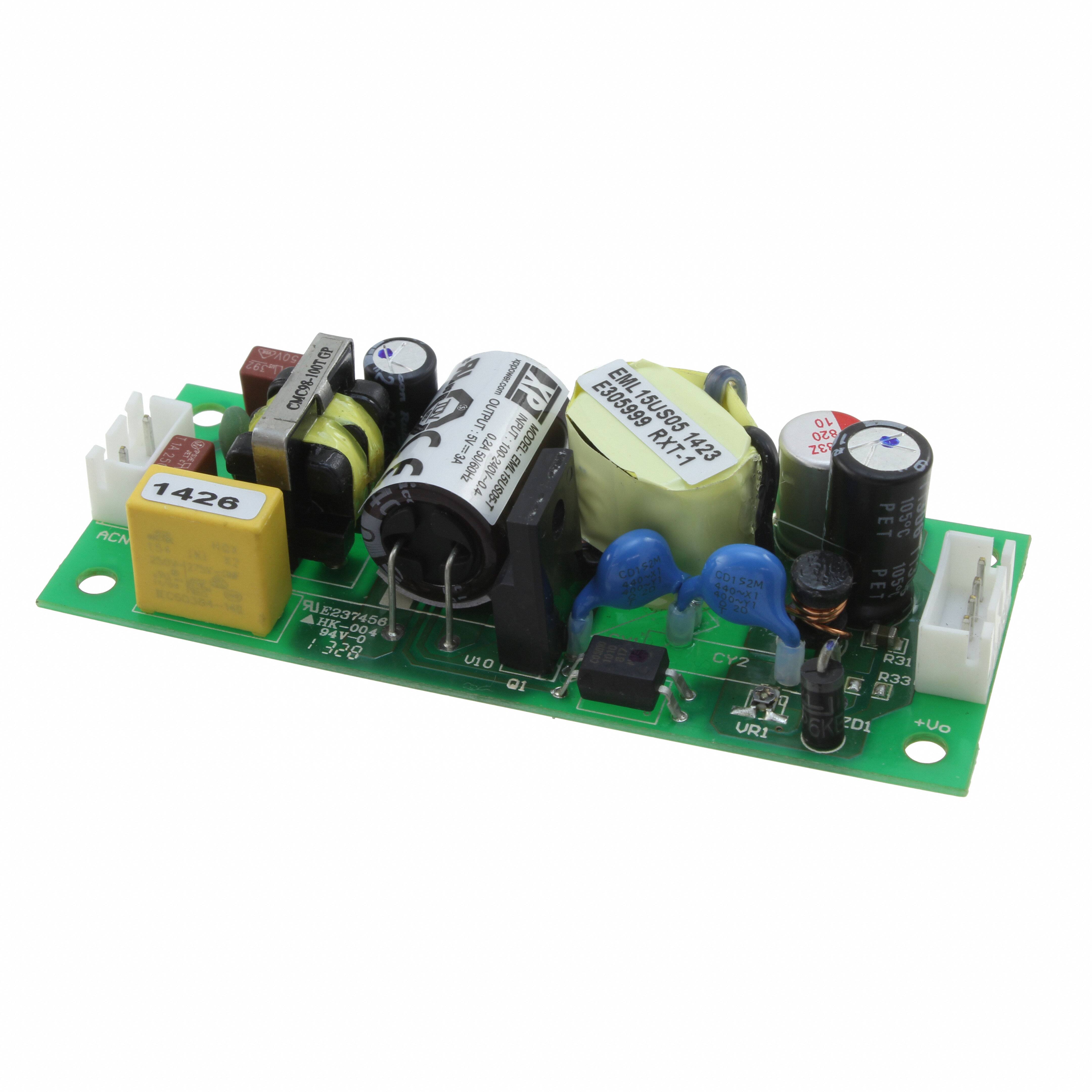

XP POWER EML15US05-TAC/DC Open Frame Power Supply, Medical, Adjustable, Fixed, 85 V, 264 V, 15 W, 5 V, 3 A
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mount Chassis, Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature -20°C~70°C With Derating
Published 2014
Series EML15 (15W)
Size / Dimension 3.10Lx1.25W x 0.78 H 78.7mmx31.7mmx20.0mm
Feature Adjustable Output, DC Input Capable, Universal Input
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications Medical
Max Power Dissipation 15W
Number of Outputs 1
Efficiency 78%
Voltage - Isolation 4kV
Max Output Current 3A
Voltage - Input 85V~264VAC
Output Power 15W
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 3A
Max Output Power 15W
Minimum Load Required No
Nominal Output Voltage 5V
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V
Dimensions
Height 19.812mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
