EMH350PD24-EF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

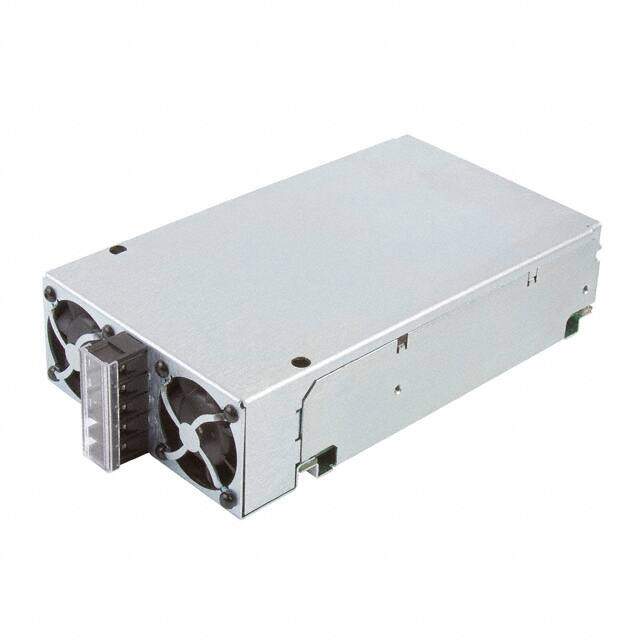

XP POWER EMH350PD24-EFAC/DC Enclosed Power Supply, Medical, Adjustable, Fixed, 24V, 8.3A, 48V, 4.2A
PDF
/
Buying Options
Total Price: USD $441
Unit Price: USD $441
≥1 USD $441
≥10 USD $416.03774
≥100 USD $392.48843
Inventory: 58
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 101.6mm
Length 177.8mm
Height 39.878mm
Technical
Max Input Voltage (AC) 275V
Min Input Voltage (AC) 80V
Current - Output 2 4.2A
Minimum Load Required No
Max Output Power 354W
Current - Output 1 8.3A
Max Input Voltage 275V
Min Input Voltage 80V
Voltage - Output 2 48V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Output Power 418W
Voltage - Input 80V~275VAC
Current - Output (Max) 8.3A 4.2A
Voltage - Output 1 24V
Max Output Current 4.2A
Output Voltage 24V
Voltage - Isolation 4kV
Efficiency 87%
Approval Agency CB, CE, TUV, UL
Number of Outputs 2
Max Power Dissipation 350W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial), Medical
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
Size / Dimension 7.00Lx4.00W x 1.75 H 177.8mmx101.6mmx44.5mm
Series EMH (350W)
Published 2011
Operating Temperature 0°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis Mount, Panel
Supply Chain
Factory Lead Time 24 Weeks
