EMH350PD23-U
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

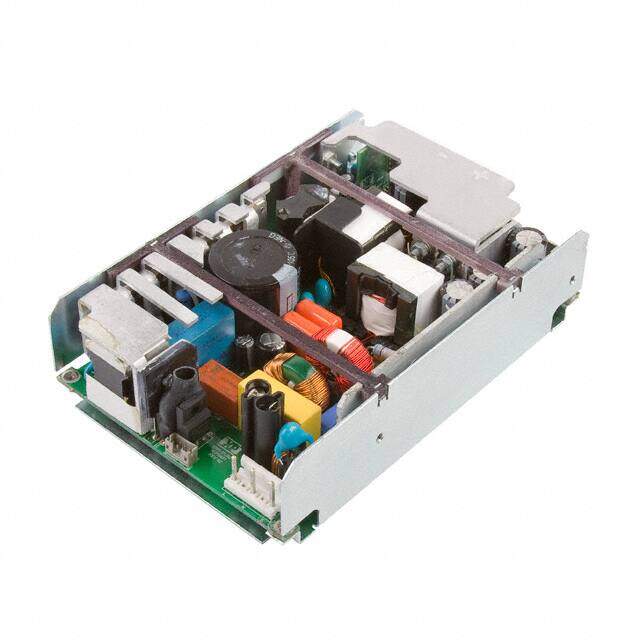

XP POWER EMH350PD23-UAC/DC Open Frame Power Supply, Medical, Adjustable, Fixed, 355W, 12V, 16.5A, 48V, 4.2A
PDF
/
Buying Options
Total Price: USD $386.37
Unit Price: USD $386.37
≥1 USD $386.37
≥10 USD $364.5
≥100 USD $343.86792
≥1000 USD $306.04123
Inventory: 1888
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 101.6mm
Height 39.878mm
Technical
Max Input Voltage (AC) 275V
Min Input Voltage (AC) 80V
Current - Output 2 4.2A
Minimum Load Required No
Max Output Power 355W
Current - Output 1 16.5A
Max Input Voltage 275V
Min Input Voltage 80V
Voltage - Output 2 48V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Output Power 350W
Voltage - Input 80V~275VAC
Current - Output (Max) 16.5A 4.2A
Voltage - Output 1 12V
Max Output Current 4.2A
Output Voltage 12V
Voltage - Isolation 4kV
Efficiency 87%
Approval Agency CB, CE, TUV, UL
Number of Outputs 2
Max Power Dissipation 350W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial), Medical
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
Size / Dimension 6.00Lx4.00W x 1.57 H 152.4mmx101.6mmx39.8mm
Series EMH (350W)
Published 2011
Operating Temperature 0°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis, Chassis Mount
Supply Chain
Factory Lead Time 24 Weeks
