EMA212PS12

XP Power
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters

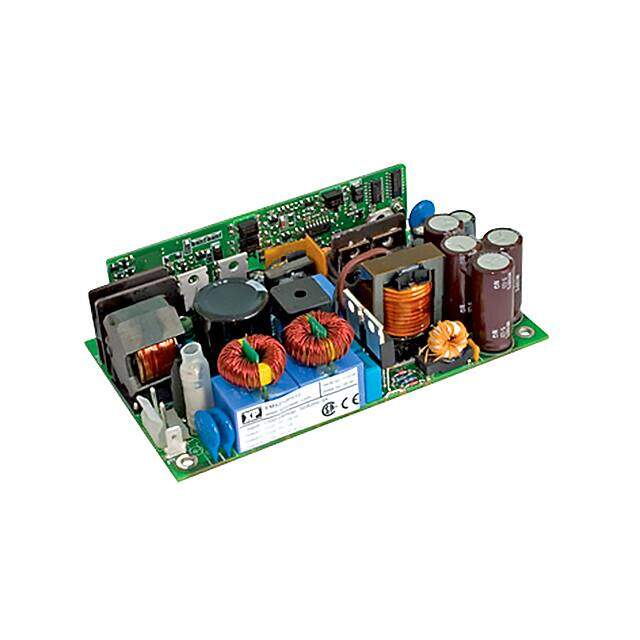

Description XP POWER EMA212PS12 AC/DC Open Frame Power Supply, Fixed, 1 Output, 90 V, 264 V, 212 W, 12 V
PDF
/
Inventory: 3318
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC Unknown

Technical

Current - Output 3 100mA
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 90V
Current - Output 2 1A
Input Current 1.1A
Nominal Output Voltage 12V
Minimum Load Required No
Max Output Power 212W
Voltage - Output 3 5V
Current - Output 1 16.7A
Max Input Voltage 264V
Min Input Voltage 90V
Voltage - Output 2 12V
Output Current 16.7A
Voltage - Input 90V~264VAC
Max Output Current 16.7A
Output Voltage 12V
Voltage - Isolation 3000V
Efficiency 88%
Number of Outputs 1
Power Rating 212W
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Size / Dimension 5.00Lx3.00W x 1.22 H 127.0mmx76.2mmx31.0mm
Series EMA212 (212W)
Published 2009
Operating Temperature -10°C~70°C With Derating

Physical

Mounting Type Chassis Mount

Supply Chain

Factory Lead Time 17 Weeks
