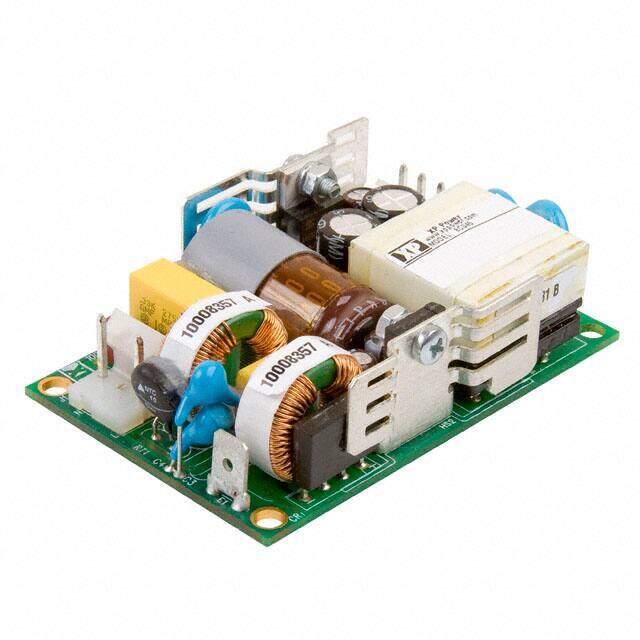

ECS45US24 image
Favorite
ECS45US24 image
Favorite

ECS45US24

XP Power
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description XP POWER ECS45US24 AC/DC Open Frame Power Supply, Medical, Adjustable, Fixed, 1 Output, 80 V, 264 V, 45 W, 24 V
PDF
/
Buying Options
Total Price: USD $38.2
Unit Price: USD $38.2024
≥1 USD $38.2024
≥10 USD $36.04
≥100 USD $34
≥500 USD $32.07547
≥1000 USD $30.25988
Inventory: 2733
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 24 Weeks

Physical

Mount Chassis, Chassis Mount
Mounting Type Chassis Mount

Technical

Operating Temperature -20°C~70°C With Derating
Published 2010
Series ECS (45W)
Size / Dimension 3.00Lx2.00W x 1.05 H 76.2mmx50.8mmx26.7mm
Feature Adjustable Output, DC Input Capable, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial), Medical
Subcategory Power Supply Modules
Power Rating 45W
Max Power Dissipation 45W
Number of Outputs 1
Approval Agency CB
Efficiency 90%
Voltage - Isolation 4kV
Output Voltage 24V
Max Output Current 1.9A
Voltage - Input 80V~264VAC
Output Current 1.9A
Output Power 45W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Min Input Voltage 80V
Max Input Voltage 264V
Current - Output 1 1.9A
Max Output Power 45W
Minimum Load Required No
Nominal Output Voltage 24V
Min Input Voltage (AC) 80V
Max Input Voltage (AC) 264V

Dimensions

Height 26.7mm
Length 76.2mm
Width 50.8mm

Compliance

REACH SVHC Unknown
RoHS Status ROHS3 Compliant
