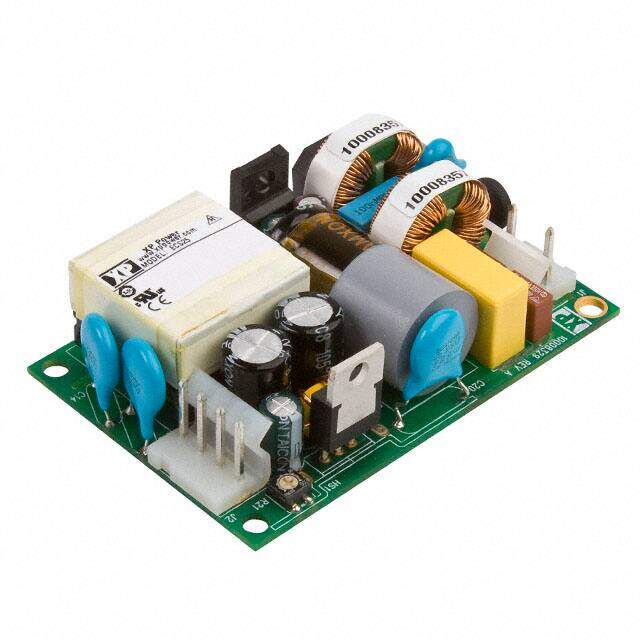

ECS25US15
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
XP POWER ECS25US15 AC/DC Open Frame Power Supply, Medical, Adjustable, Fixed, 1 Output, 80 V, 264 V, 25 W, 15 V
PDF
/
Buying Options
Total Price: USD $30.34
Unit Price: USD $30.3372
≥1 USD $30.3372
≥10 USD $28.62
≥100 USD $27
≥1000 USD $24.0299
Inventory: 2315
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 50.8mm
Length 76.2mm
Height 24.2mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 80V
Nominal Output Voltage 15V
Minimum Load Required No
Max Output Power 25W
Current - Output 1 1.67A
Max Input Voltage 264V
Min Input Voltage 80V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 25W
Output Current 1.67A
Voltage - Input 80V~264VAC
Max Output Current 1.67A
Output Voltage 15V
Voltage - Isolation 4kV
Efficiency 90%
Approval Agency CB
Number of Outputs 1
Max Power Dissipation 25W
Power Rating 25W
Subcategory Power Supply Modules
Applications ITE (Commercial), Medical
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 3.00Lx2.00W x 0.95 H 76.2mmx50.8mmx24.2mm
Series ECS (25W)
Published 2010
Operating Temperature -20°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis, Chassis Mount
Supply Chain
Factory Lead Time 24 Weeks
