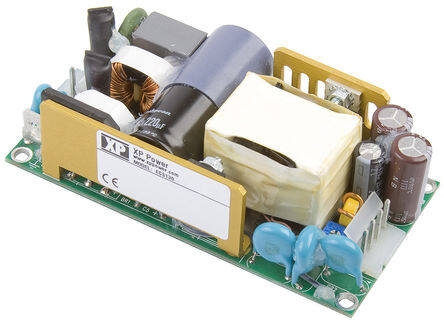

ECS130US28

XP Power
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description XP POWER ECS130US28AC/DC Open Frame Power Supply, Medical, Adjustable, Fixed, 80 V, 264 V, 130 W, 28 V, 4.7 A
PDF
/
Buying Options
Total Price: USD $90.63
Unit Price: USD $90.63
≥1 USD $90.63
≥10 USD $85.5
≥100 USD $80.66038
≥1000 USD $71.78745
Inventory: 5827
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC Unknown

Dimensions

Width 50.8mm
Height 32.5mm

Technical

Nominal Output Voltage 28V
Minimum Load Required No
Max Output Power 130W
Current - Output 1 4.7A
Max Input Voltage 264V
Min Input Voltage 80V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 130W
Voltage - Input 80V~264VAC
Max Output Current 4.7A
Output Voltage 28V
Voltage - Isolation 4000V
Efficiency 90%
Approval Agency CB
Number of Outputs 1
Subcategory Power Supply Modules
Power (Watts) 100W 130W Forced Air
Applications ITE (Commercial), Medical
Type Open Frame
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature DC Input Capable, PFC, Universal Input
Size / Dimension 4.00Lx2.00W x 1.28 H 101.6mmx50.8mmx32.5mm
Series ECS (130W)
Published 2013
Operating Temperature -40°C~70°C With Derating

Physical

Mounting Type Chassis Mount

Supply Chain

Factory Lead Time 24 Weeks
