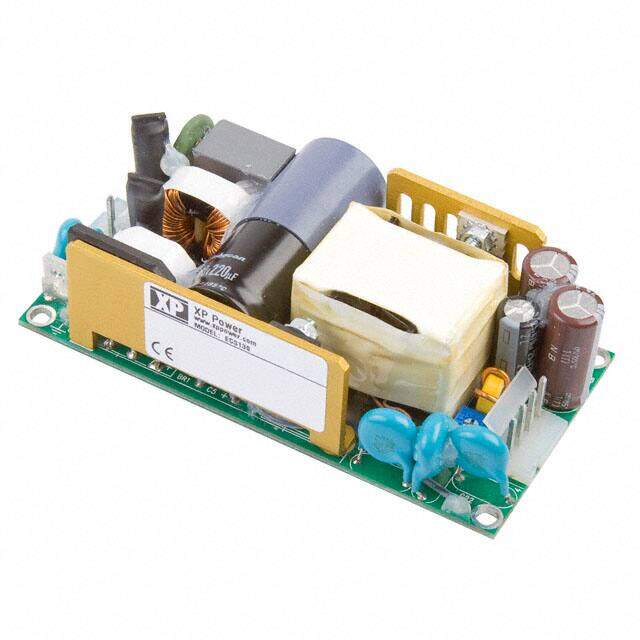

ECS130US24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
XP POWER ECS130US24AC/DC Open Frame Power Supply, Medical, Adjustable, Fixed, 80 V, 264 V, 130 W, 24 V, 5.4 A
PDF
/
Buying Options
Total Price: USD $82.58
Unit Price: USD $82.5846
≥1 USD $82.5846
≥10 USD $77.91
≥100 USD $73.5
≥500 USD $69.33962
≥1000 USD $65.41474
Inventory: 1805
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mount Chassis, Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature -20°C~70°C With Derating
Published 2010
Series ECS (130W)
Size / Dimension 4.00Lx2.00W x 1.25 H 101.6mmx50.8mmx31.8mm
Feature Adjustable Output, DC Input Capable, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial), Medical
Power (Watts) 100W 130W Forced Air
Subcategory Power Supply Modules
Max Power Dissipation 100W
Number of Outputs 1
Approval Agency CB
Efficiency 90%
Voltage - Isolation 4kV
Output Voltage 24V
Max Output Current 5.4A
Voltage - Input 80V~264VAC
Output Power 100W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Min Input Voltage 80V
Max Input Voltage 264V
Current - Output 1 5.4A
Max Output Power 130W
Minimum Load Required No
Nominal Output Voltage 24V
Dimensions
Height 31.75mm
Width 50.8mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
Alternative Model
