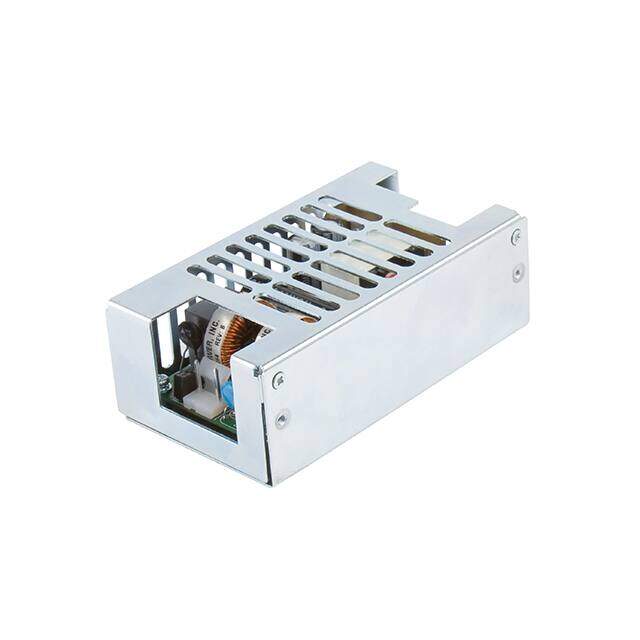

ECS100US24-C

XP Power
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description AC-DC CONV, ENCLOSED, 1 O/P, 80W, 4.2A
PDF
/
Buying Options
Total Price: USD $94.87
Unit Price: USD $94.87
≥1 USD $94.87
≥10 USD $89.5
≥100 USD $84.43396
≥1000 USD $75.14593
Inventory: 4479
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 24 Weeks

Physical

Mounting Type Chassis Mount

Technical

Operating Temperature -20°C~70°C With Derating
Published 2014
Series ECS (100W)
Size / Dimension 4.00Lx2.00W x 1.25 H 101.6mmx50.8mmx31.8mm
Feature Adjustable Output, DC Input Capable, PFC, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial), Medical
Power (Watts) 80W 100W Forced Air
Subcategory Power Supply Modules
Number of Outputs 1
Approval Agency CB
Efficiency 90%
Voltage - Isolation 4000V
Output Voltage 24V
Max Output Current 4.2A
Max Voltage Rating (AC) 264V
Voltage - Input 80V~264VAC
Output Power 80W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Min Input Voltage 80V
Max Input Voltage 264V
Current - Output 1 4.2A
Max Output Power 80W
Minimum Load Required No
Nominal Output Voltage 24V
Min Input Voltage (AC) 80V

Dimensions

Width 50.8mm

Compliance

REACH SVHC Unknown
RoHS Status RoHS Compliant
