ECP60UD02
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

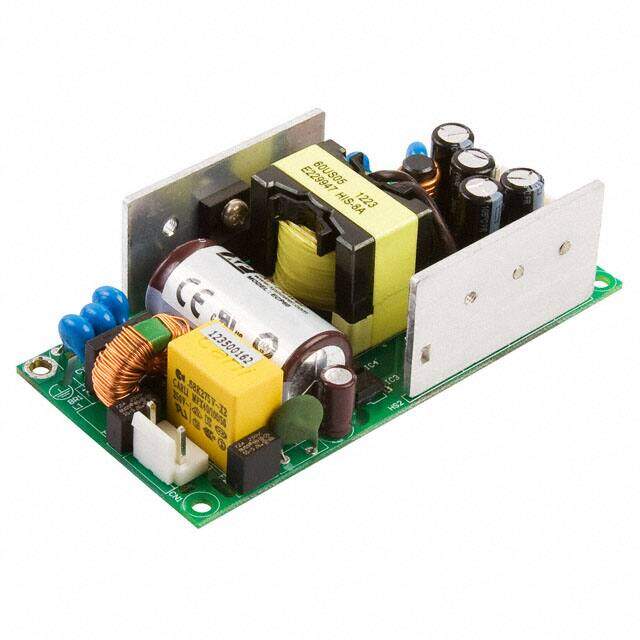

XP POWER ECP60UD02 AC/DC Open Frame Power Supply, Adjustable, Fixed, 2 Output, 85 V, 264 V, 60 W, 5 V
PDF
/
Buying Options
Total Price: USD $60.86
Unit Price: USD $60.86092
≥1 USD $60.86092
≥10 USD $57.41596
≥100 USD $54.166
≥1000 USD $48.20755
Inventory: 4867
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 50.8mm
Length 101.6mm
Height 30.48mm
Technical
Current - Output 2 2A
Nominal Output Voltage 15V
Minimum Load Required No
Max Output Power 60W
Current - Output 1 7A
Max Input Voltage 264V
Min Input Voltage 85V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 60W
Output Current 7A
Voltage - Input 85V~264VAC
Current - Output (Max) 7A 2A
Max Output Current 2A
Output Voltage 5V
Voltage - Isolation 4kV
Efficiency 88%
Approval Agency CSA, EN, IEC, UL
Number of Outputs 2
Max Power Dissipation 60W
Power Rating 60W
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Applications ITE (Commercial), Medical
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, Universal Input
Size / Dimension 4.00Lx2.00W x 1.20 H 101.6mmx50.8mmx30.5mm
Series ECP (60W)
Published 2013
Operating Temperature -20°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis, Chassis Mount
Supply Chain
Factory Lead Time 18 Weeks
