ECP40UT02
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

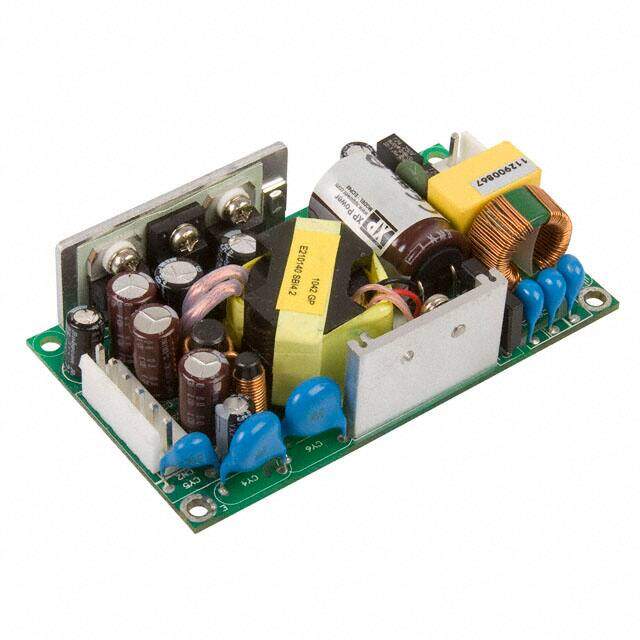

XP POWER ECP40UT02 AC/DC Open Frame Power Supply, Adjustable, Fixed, 3 Output, 85 V, 264 V, 40 W, 5 V
PDF
/
Buying Options
Total Price: USD $56.18
Unit Price: USD $56.18
≥1 USD $56.18
≥10 USD $53
≥100 USD $50
≥1000 USD $44.49982
≥3000 USD $41.98096
Inventory: 3610
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 50.8mm
Length 88.9mm
Height 22mm
Technical
Current - Output 3 500mA
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Current - Output 2 1.5A
Minimum Load Required Yes
Max Output Power 40W
Voltage - Output 3 -15V
Current - Output 1 5A
Max Input Voltage 264V
Min Input Voltage 85V
Voltage - Output 2 15V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 40W
Output Current 5A
Voltage - Input 85V~264VAC
Current - Output (Max) 5A 1.5A 500mA
Max Output Current 1.5A
Output Voltage 5V
Voltage - Isolation 4kV
Efficiency 90%
Approval Agency CB, TUV
Number of Outputs 3
Max Power Dissipation 40W
Power Rating 40W
Subcategory Power Supply Modules
Applications ITE (Commercial), Medical
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, Universal Input
Size / Dimension 3.50Lx2.00W x 1.01 H 88.9mmx50.8mmx26.0mm
Series ECP (40W)
Published 2009
Operating Temperature -20°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis, Chassis Mount
Supply Chain
Factory Lead Time 18 Weeks
