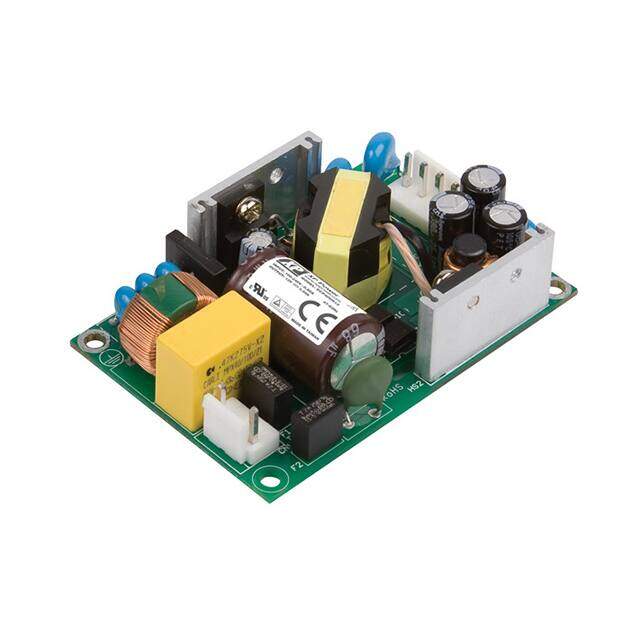

ECP40US48

XP Power
RoHS
/
Package Module
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description XP POWER ECP40US48 AC/DC Open Frame Power Supply, Medical, Adjustable, Fixed, 1 Output, 85 V, 264 V, 40 W, 48 V
PDF
/
Inventory: 8554
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 18 Weeks

Physical

Mount PCB
Mounting Type Chassis Mount
Package / Case Module

Technical

Operating Temperature -10°C~70°C With Derating
Published 2011
Series ECP (40W)
Size / Dimension 3.00Lx2.00W x 0.91 H 76.2mmx50.8mmx23.1mm
Feature PFC, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Open Frame
Applications ITE (Commercial), Medical
Power Rating 40W
Number of Outputs 1
Approval Agency UL
Efficiency 92%
Voltage - Isolation 4000V
Output Voltage 48V
Max Output Current 840mA
Operating Supply Voltage 230V
Voltage - Input 85V~264VAC
Output Current 840mA
Output Power 40W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 840mA
Max Output Power 40W
Minimum Load Required No
Nominal Output Voltage 48V

Dimensions

Height 19mm
Length 76.2mm
Width 50.8mm

Compliance

REACH SVHC Unknown
RoHS Status RoHS Compliant
