ECP225PS12-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

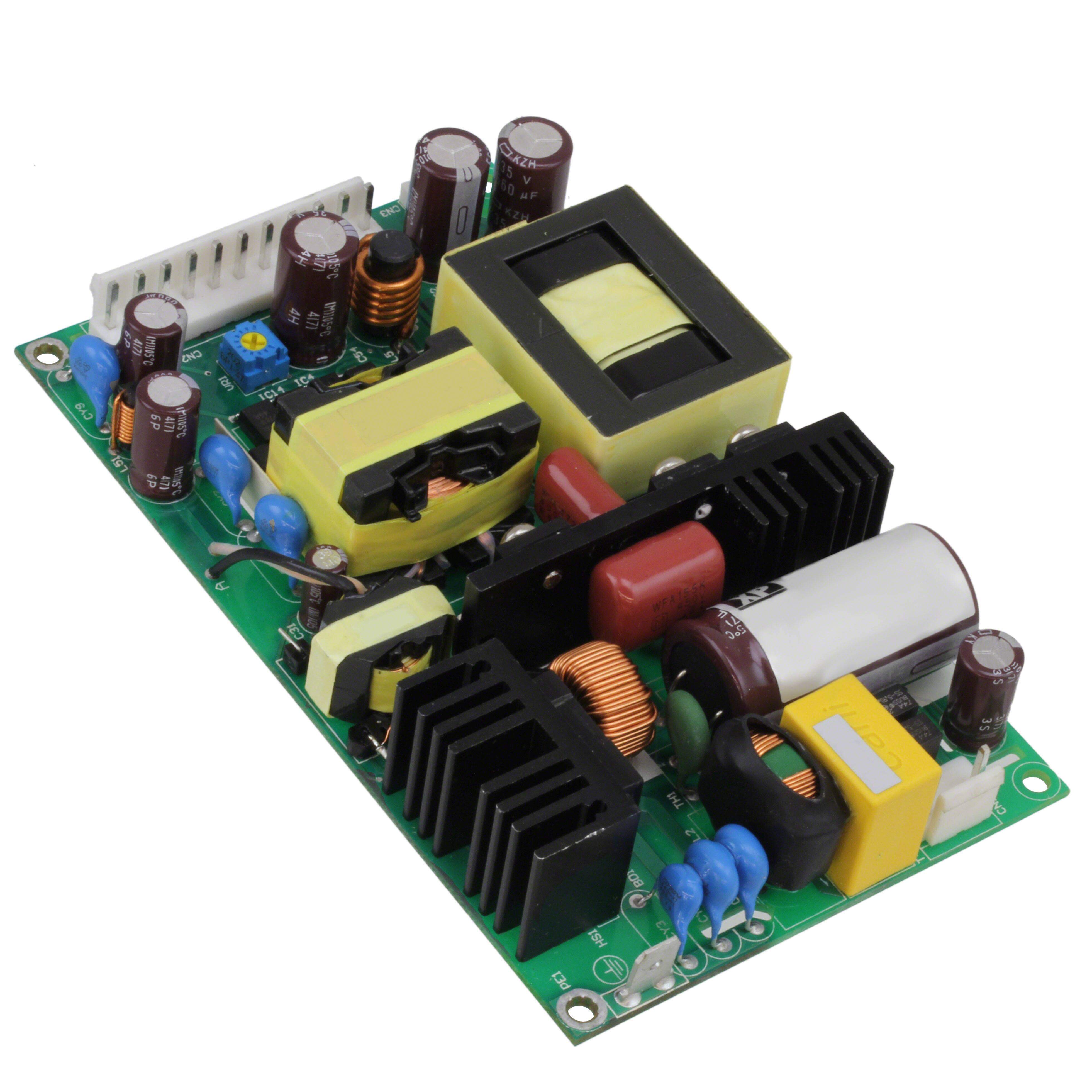

XP POWER ECP225PS12-AAC/DC Open Frame Power Supply, Medical, Adjustable, Fixed, 85 V, 264 V, 150 W, 12 V, 12.5 A
PDF
/
Buying Options
Total Price: USD $156.18
Unit Price: USD $156.1804
≥1 USD $156.1804
≥10 USD $147.34
≥100 USD $139
Inventory: 9648
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Chassis, Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature -20°C~70°C With Derating
Published 2013
Series ECP225-A (225W)
Size / Dimension 5.00Lx3.00W x 1.00 H 127.0mmx76.2mmx25.4mm
Feature Adjustable Output, PFC, Remote On/Off, Standby Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial), Medical
Power (Watts) 150W 225W Forced Air
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Max Power Dissipation 150W
Number of Outputs 1
Approval Agency CB, CE, UL
Efficiency 92%
Voltage - Isolation 4kV
Output Voltage 12V
Max Output Current 12.5A
Voltage - Input 85V~264VAC
Output Power 150W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 12.5A
Max Output Power 150W
Minimum Load Required No
Nominal Output Voltage 12V
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V
Dimensions
Height 25.4mm
Width 76.2mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
