ECP180PS36

XP Power
RoHS
RoHS RoHS compliant
Package 120
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters

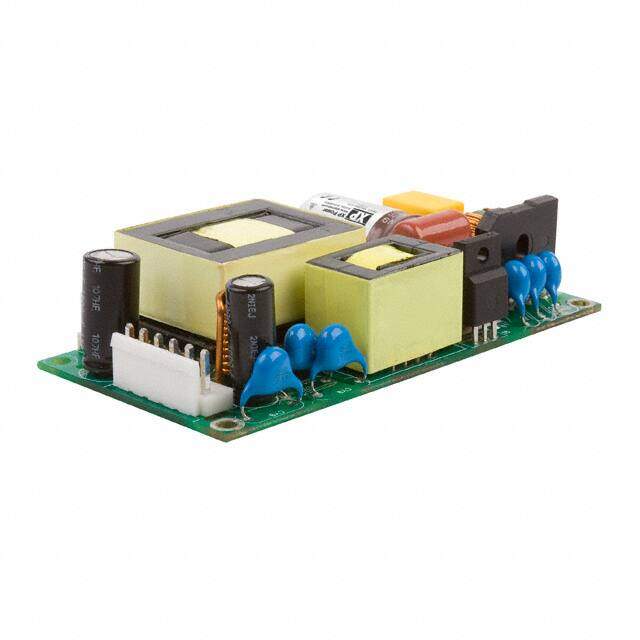

Description XP POWER ECP180PS36AC/DC Open Frame Power Supply, Medical, Fixed, 85 V, 264 V, 120 W, 36 V, 3.33 A
PDF
/
Buying Options
Total Price: USD $127.32
Unit Price: USD $127.31961
≥1 USD $127.31961
≥10 USD $120.11284
≥100 USD $113.314
≥1000 USD $100.84906
≥3000 USD $95.14062
Inventory: 9827
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC Unknown

Dimensions

Width 50.8mm
Height 21.336mm

Technical

Nominal Output Voltage 36V
Minimum Load Required No
Max Output Power 120W
Current - Output 1 3.33A
Max Input Voltage 264V
Min Input Voltage 85V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Output Power 120W
Voltage - Input 85V~264VAC
Max Output Current 5A
Output Voltage 36V
Voltage - Isolation 4kV
Efficiency 94%
Approval Agency EN, IEC, UL
Number of Outputs 1
Max Power Dissipation 120W
Subcategory Power Supply Modules
Power (Watts) 120W 180W Forced Air
Applications ITE (Commercial), Medical
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, Universal Input
Size / Dimension 4.00Lx2.00W x 0.84 H 101.6mmx50.8mmx21.6mm
Series ECP180 (180W)
Published 2013
Operating Temperature -20°C~70°C With Derating

Physical

Package / Case 120
Mounting Type Chassis Mount
Mount Chassis, Chassis Mount

Supply Chain

Factory Lead Time 18 Weeks
