ECP150PS24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

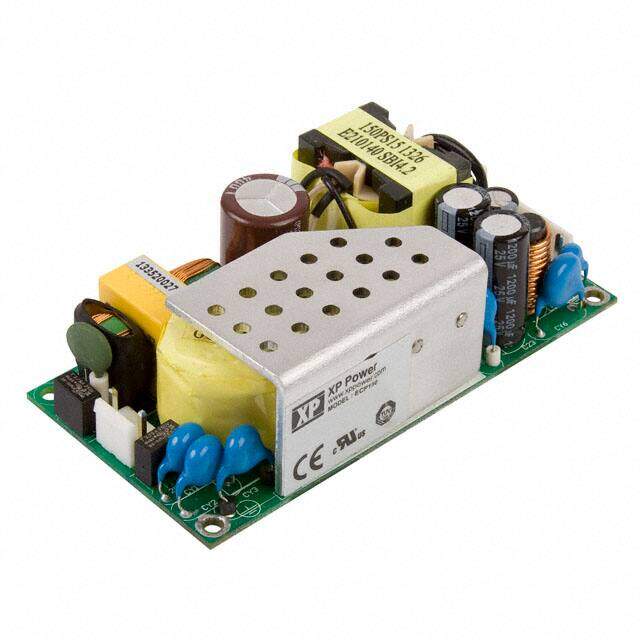

XP POWER ECP150PS24 AC/DC Open Frame Power Supply, Medical, Adjustable, Fixed, 1 Output, 90 V, 264 V, 150 W, 24 V
PDF
/
Buying Options
Total Price: USD $86.49
Unit Price: USD $86.4864
≥1 USD $86.4864
≥10 USD $83.8904
≥100 USD $81.2944
≥500 USD $77.836352
≥1000 USD $72.653152
Inventory: 392
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Chassis, Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature -20°C~70°C With Derating
Published 2011
Series ECP (150W)
Size / Dimension 4.00Lx2.00W x 1.26 H 101.6mmx50.8mmx32.0mm
Feature Adjustable Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial), Medical
Power (Watts) 100W 150W Forced Air
Subcategory Power Supply Modules
Power Rating 150W
Max Power Dissipation 100W
Number of Outputs 1
Approval Agency CB, CE, TUV, UL
Efficiency 91%
Voltage - Isolation 4kV
Output Voltage 24V
Max Output Current 4.17A
Voltage - Input 85V~264VAC
Output Current 6.25A
Output Power 100W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Min Input Voltage 90V
Max Input Voltage 264V
Current - Output 1 6.25A
Max Output Power 150W
Minimum Load Required No
Nominal Output Voltage 24V
Min Input Voltage (AC) 90V
Max Input Voltage (AC) 264V
Dimensions
Height 32.004mm
Width 50.8mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
