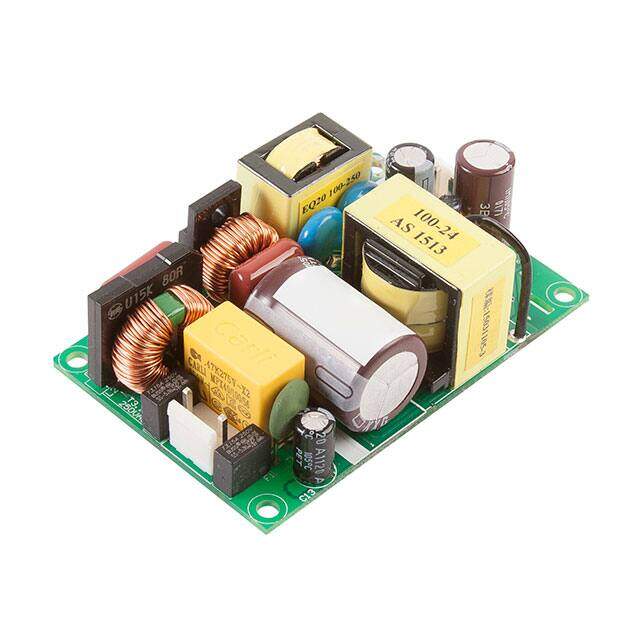

ECP130PS24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 100W/130W
PDF
/
Buying Options
Total Price: USD $70.22
Unit Price: USD $70.225
≥1 USD $70.225
≥10 USD $66.25
≥100 USD $62.5
Inventory: 152
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Chassis, Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature -20°C~70°C With Derating
Published 2015
Series ECP130 (130W)
Size / Dimension 3.00Lx2.00W x 1.10 H 76.2mmx50.8mmx28.0mm
Feature PFC, Standby Output, Universal Input
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial), Medical
Power (Watts) 100W 130W Forced Air
Max Power Dissipation 100W
Number of Outputs 1
Approval Agency CE
Efficiency 93%
Voltage - Isolation 4kV
Max Output Current 4.16A
Voltage - Output 1 24V
Voltage - Input 85V~264VAC
Output Power 100W
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 4.16A
Max Output Power 100W
Minimum Load Required No
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V
Dimensions
Height 27.94mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
