ECM60US24-C
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

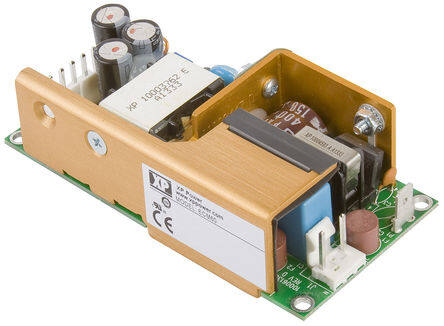

XP POWER ECM60US24-C AC/DC Enclosed Power Supply, Medical, Fixed, 1 Outputs, 90 V, 264 V, 60 W, 24 V
PDF
/
Buying Options
Total Price: USD $100
Unit Price: USD $100.0004
≥1 USD $100.0004
≥10 USD $94.34
≥100 USD $89
≥500 USD $83.96226
≥1000 USD $79.20968
Inventory: 7022
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 64mm
Length 114mm
Height 38.5mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 90V
Minimum Load Required No
Max Output Power 60W
Current - Output 1 2.5A
Max Input Voltage 264V
Min Input Voltage 90V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 60W
Output Current 2.5A
Voltage - Input 90V~264VAC
Trim/Adjustable Output YES
Input Voltage-Nom 115V
Output Voltage 24V
Voltage - Isolation 4kV
Efficiency 80%
Approval Agency CB, CE, TUV, UL
Number of Outputs 1
JESD-30 Code R-XXMA-X8
Frequency 63Hz
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power Rating 60W
Subcategory Power Supply Modules
Applications ITE (Commercial), Medical
Type Enclosed
Number of Terminations 8
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, Universal Input
Series ECM (60W)
Published 2009
Operating Temperature 0°C~70°C With Derating
Physical
Surface Mount NO
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 24 Weeks
