ECM60US15
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

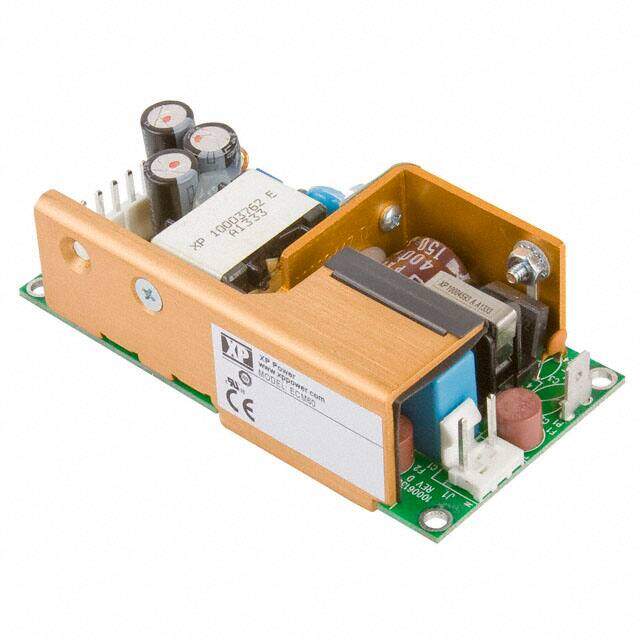

XP POWER ECM60US15 AC/DC Open Frame Power Supply, Medical, Adjustable, Fixed, 1 Output, 90 V, 264 V, 60 W, 15 V
PDF
/
Buying Options
Total Price: USD $60.9
Unit Price: USD $60.89912
≥1 USD $60.89912
≥10 USD $57.452
≥100 USD $54.2
≥500 USD $51.13208
Inventory: 899
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC Unknown
Dimensions
Width 50.8mm
Height 30.48mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 90V
Input Current 600mA
Nominal Output Voltage 15V
Minimum Load Required No
Max Output Power 60W
Current - Output 1 4A
Max Input Voltage 264V
Min Input Voltage 90V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 60W
Output Current 4A
Voltage - Input 90V~264VAC
Max Output Current 4A
Output Voltage 15V
Voltage - Isolation 4kV
Efficiency 80%
Approval Agency CB, CE
Number of Outputs 1
Frequency 63Hz
Max Power Dissipation 60W
Power Rating 60W
Subcategory Power Supply Modules
Applications ITE (Commercial), Medical
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, Universal Input
Size / Dimension 4.00Lx2.00W x 1.20 H 101.6mmx50.8mmx30.5mm
Series ECM (60W)
Published 2004
Operating Temperature 0°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Mount Chassis, Chassis Mount
Supply Chain
Factory Lead Time 24 Weeks
