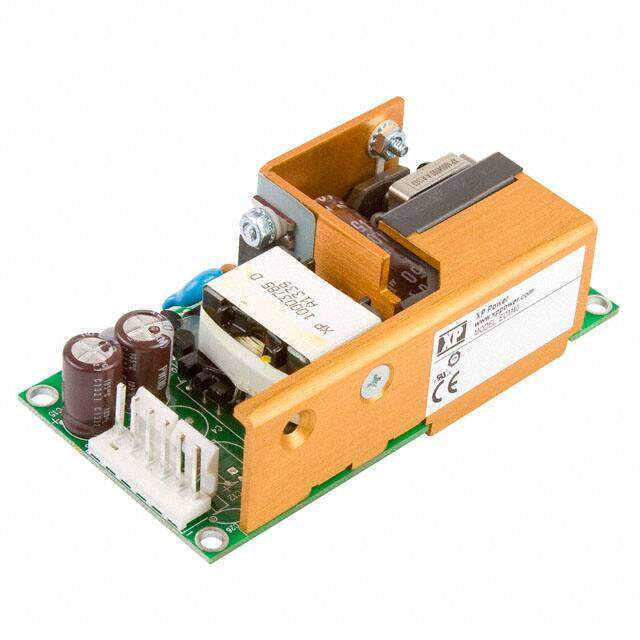

ECM40UT35

XP Power
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description XP POWER ECM40UT35AC/DC Open Frame Power Supply, Medical, Adjustable, Fixed, 40W, 5V, 6A, 3.3V, 1.5A, 12V, 500mA
PDF
/
Inventory: 5161
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant
REACH SVHC No SVHC

Dimensions

Width 50.8mm
Length 101.6mm
Height 30.5mm

Technical

Current - Output 3 500mA
Current - Output 2 1.5A
Minimum Load Required Yes
Max Output Power 40W
Voltage - Output 3 12V
Current - Output 1 6A
Max Input Voltage 264V
Min Input Voltage 90V
Voltage - Output 2 3.3V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Current 6A
Voltage - Input 90V~264VAC
Current - Output (Max) 6A 1.5A 500mA
Output Voltage 5V
Voltage - Isolation 4kV
Efficiency 85%
Approval Agency cUL
Number of Outputs 3
Power Rating 40W
Subcategory Power Supply Modules
Applications ITE (Commercial), Medical
Type Open Frame
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, Universal Input
Size / Dimension 4.00Lx2.00W x 1.20 H 101.6mmx50.8mmx30.5mm
Series ECM (40W)
Published 2004
Operating Temperature 0°C~70°C With Derating

Physical

Weight 150g
Mounting Type Chassis Mount

Supply Chain

Factory Lead Time 24 Weeks
