ECM100US07
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

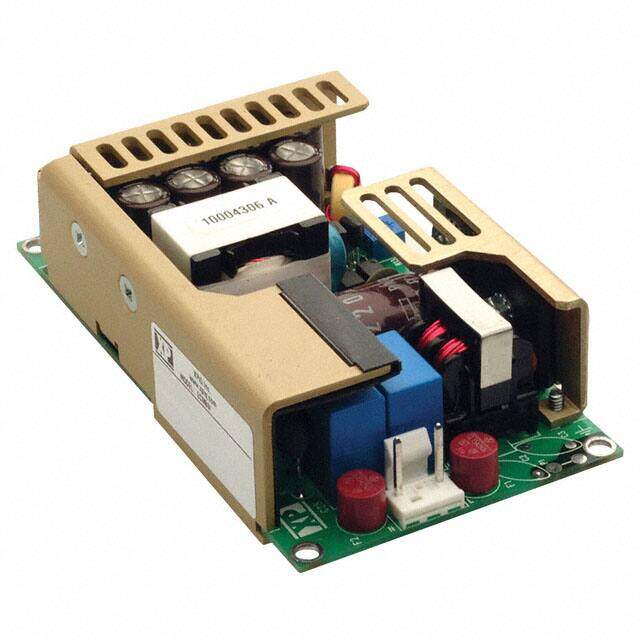

XP POWER ECM100US07 AC/DC Open Frame Power Supply, Medical, Adjustable, Fixed, 1 Output, 90 V, 264 V, 79.8 W, 7 V
PDF
/
Buying Options
Total Price: USD $120.31
Unit Price: USD $120.31
≥1 USD $120.31
≥10 USD $113.5
≥100 USD $107.07547
≥500 USD $101.0146
≥1000 USD $95.29679
Inventory: 1570
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 24 Weeks
Physical
Mount Chassis, Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature 0°C~70°C With Derating
Published 2004
Series ECM (100W)
Size / Dimension 4.50Lx2.50W x 1.20 H 114.3mmx63.5mmx30.5mm
Feature Adjustable Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial), Medical
Subcategory Power Supply Modules
Power Rating 100W
Max Power Dissipation 100W
Number of Outputs 1
Approval Agency CB, CE
Efficiency 80%
Voltage - Isolation 4kV
Output Voltage 7V
Max Output Current 14.3A
Voltage - Input 90V~264VAC 120V~370VDC
Output Current 11.4A
Output Power 100W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Min Input Voltage 90V
Max Input Voltage 264V
Current - Output 1 11.4A
Max Output Power 79.8W
Minimum Load Required No
Nominal Output Voltage 7V
Min Input Voltage (AC) 90V
Max Input Voltage (AC) 264V
Dimensions
Height 30.5mm
Width 63.5mm
Compliance
REACH SVHC Unknown
RoHS Status ROHS3 Compliant
